VETSMART™ Table Digital X-Ray Solution

$0.00
CALL FOR PRICING
SKU
VETSMART

Enjoy a completely tailored veterinary experience. Patient demographics include the Animal name and breed, and owner name and information. The acquisition will also show four categories of animals, with specific views set for each animal.

VETSMART Table System

  • Fixed 40" SID
  • Toshiba x-ray tube 140 HU 1-2mm focal spot
  • kVP range: 40-150kV
  • Single Phase 208-230VAC
  • High frequency 32kW capacitor assisted 400mA generator
  • 15" Touch Screen Operator Console
  • Six exclusive table base/table top designs
    • 40" Base w/ 64" standard table top
    • 30" Base w/ 40", 48", 56" table top options
    • 40" Base w/ 48", 56", 64" table top options
    • Oval top w/ urine track
  • Unique Push and Open pull out tray to access DR detector
  • Exclusive Push and Open Front panel latch mechanism for easy generator access

SMART X-Ray Generator

  • Low input amperage
  • SMART APR
  • Remote real-time monitoring, calibration and maintenance features (optional)
    • Exclusive self-diagnostic tool based on lot and machine learning
    • To reduce the need for onsite service technicians

SMART X-Ray Collimator

  • Patented ATD (Auto Thickness Detection) technology
  • Open APR integration: control kV, mA, and mS
  • Exclusively control generator dosage (embedded AI/lot) by detecting body part for ideal exposure

Enjoy a completely tailored veterinary experience. Patient demographics include the Animal name and breed, and owner name and information. The acquisition will also show four categories of animals, with specific views set for each animal.

VETSMART Table System

  • Fixed 40" SID
  • Toshiba x-ray tube 140 HU 1-2mm focal spot
  • kVP range: 40-150kV
  • Single Phase 208-230VAC
  • High frequency 32kW capacitor assisted 400mA generator
  • 15" Touch Screen Operator Console
  • Six exclusive table base/table top designs
    • 40" Base w/ 64" standard table top
    • 30" Base w/ 40", 48", 56" table top options
    • 40" Base w/ 48", 56", 64" table top options
    • Oval top w/ urine track
  • Unique Push and Open pull out tray to access DR detector
  • Exclusive Push and Open Front panel latch mechanism for easy generator access

SMART X-Ray Generator

  • Low input amperage
  • SMART APR
  • Remote real-time monitoring, calibration and maintenance features (optional)
    • Exclusive self-diagnostic tool based on lot and machine learning
    • To reduce the need for onsite service technicians

SMART X-Ray Collimator

  • Patented ATD (Auto Thickness Detection) technology
  • Open APR integration: control kV, mA, and mS
  • Exclusively control generator dosage (embedded AI/lot) by detecting body part for ideal exposure

Acquisition Interface

Superior Image Quality

  • Sharper images, optimized clarity
  • Configured for grid suppression
  • Quick view selection
  • Customizable image sharpness level
  • Auto Contrast upon processing
  • Image auto-shutter/crop
  • Images auto-save during acquisition to Server for immediate access in exam rooms

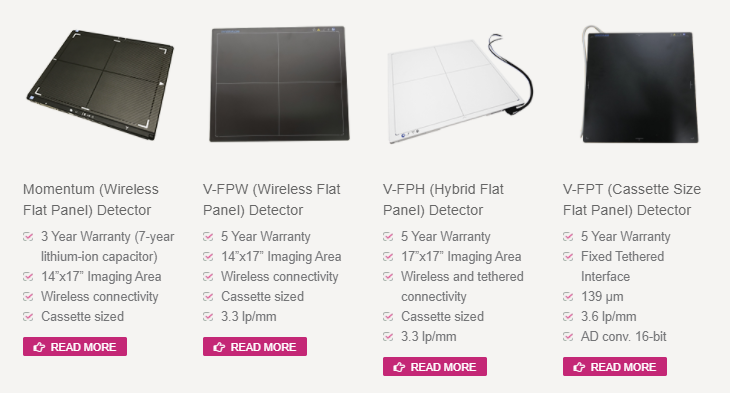

Available with your choice of DR Panels

2020 Imaging DR

Momentum Wireless Panel (Cesium Flatpanel)
#1 Composite User Satisfaction Score of the MD-Buyline Customer Satisfaction Survey, the 14x17 wireless Flat Panel detector is lightweight and easy to maneuver, and is a true cassette sized hospital-grade 16-bit DR Panel with a Cesium scintillator providing the highest image quality possible.

V-FPH Hybrid Panel (Hybrid Flatpanel, Cesium)
Enjoy 3 unique operating configurations with the 17x17 hybrid, including full wireless, wired power connection, and wired (fixed) power and data connections. Providing the most in versitility with exceptional image quality, and paired with advanced software features and functionality.

V-FP Tethered Panel (Flatpanel, Cesium)
The versatile Flat Panel DR system offers images within seconds of exposure and fits easily into smaller x-ray rooms. The 17x17 inch panel produces high quality images and is configurable on multiple chiropractic stands. FP offers true flatpanel technology.

V-FPW Wireless Panel (Wireless Flatpanel, Cesium)
All new wireless connectivity. Eliminate the need for a static wired connection & the need to run extra cabling. The 14x17 inch panel produces high quality images wirelessly.

Opal-VET Software

Multi-functional Studylist

  • Burn/Import CDs
  • Compare images (post/pre op)
  • Custom search/query
  • Customize user privileges
  • User friendly, DICOM compliant, DPM Tools
  • 5 additional viewing licenses included
  • WORLDWIDE access: view from anywhere!*

VHS (Vertebral Heart Score tool)

Vertebral Heart Size (VHS) is a number that normalizes (indexes) heart size to body size using mid-thoracic vertebrae as units of measure (see left). It has become the standard indicator of radiographic heart size in dogs, cats, and several other species.

    *VHS Tool Included
