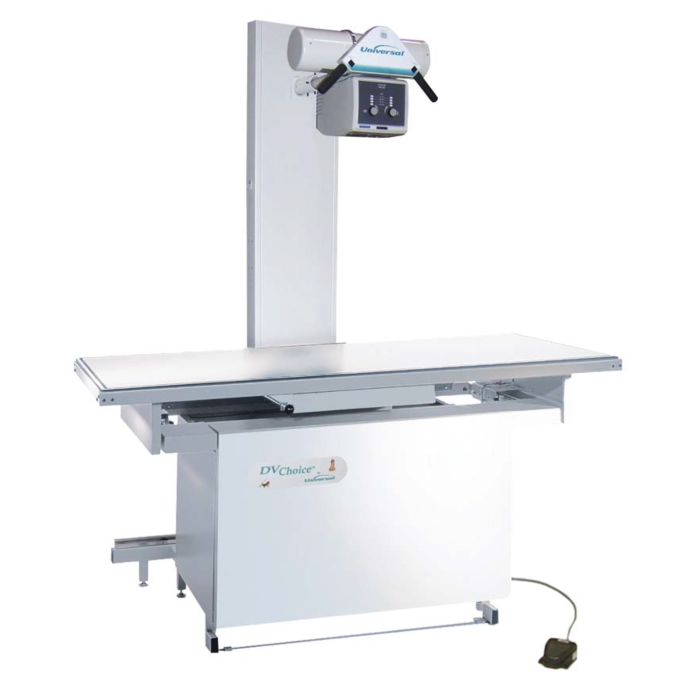

Universal DV Choice

$0.00
CALL FOR PRICING
SKU
DV Choice

Features

The user-friendly DelWorks Veterinary specific acquisition software is easy to operate and features a wide range of tools for a variety of image manipulations.

DVChoice systems are equipped with an integrated tube stand and an anatomically programmed, high frequency digital ready generator providing a cost effective and time saving solution for the veterinarian who seeks maximum capability in minimal space.

Benefits

Key benefits of the Universal DV Choice include:

  • Flat panel DR system with wired, wireless and fixed detector options
  • Features DelWorks simple to use veterinary specific acquisition and processing software
  • DICOM Store, DICOM Print and DICOM Modality Worklist
  • Welded construction table with urine trap
  • 400 lbs. patient weight capacity
  • Exposure footswitch and elecrtic release strips
  • Available with a stationary, 2-way or 4-way float top table
  • Generator located inside table cabinet
  • Optional variable SID configuration

Features

The user-friendly DelWorks Veterinary specific acquisition software is easy to operate and features a wide range of tools for a variety of image manipulations.

DVChoice systems are equipped with an integrated tube stand and an anatomically programmed, high frequency digital ready generator providing a cost effective and time saving solution for the veterinarian who seeks maximum capability in minimal space.



Benefits

Key benefits of the Universal DV Choice include:

  • Flat panel DR system with wired, wireless and fixed detector options
  • Features DelWorks simple to use veterinary specific acquisition and processing software
  • DICOM Store, DICOM Print and DICOM Modality Worklist
  • Welded construction table with urine trap
  • 400 lbs. patient weight capacity
  • Exposure footswitch and elecrtic release strips
  • Available with a stationary, 2-way or 4-way float top table
  • Generator located inside table cabinet
  • Optional variable SID configuration

Tech Specs



DelWorks Acquisition Station Hardware



- Dell Optiplex 780 Small Form Factor Computer with Intel Core 2 Duo 3.0GHz, 4GB RAM, weight 15 lbs. (6.80 kg), keyboard and mouse
- 19" touch screen, flat-panel display, weight 18.74 lbs. (8.5 kg). Rotates 90 degrees landscape/vertical. Approved for medical use, complies with international medical safety and emission standards (CE, UL,EN, etc.)
- Active screen diagonal 19 in. (483 mm); width 14.80 in. (376 mm); height 11.85 in. (301 mm)
- Pixel pitch 0.294 mm, 16.8 million colors



DelWorks DR Detector Toshiba FDX4343R



- Cesium Iodide (CsI) Scintillator with Amorphous Silicon (a-Si) Photodiode
- 17" x 17" detector size (512 x 495 x 43mm), 16.9 x 17.3 inch active area
- 143um pixel size
- 9 megapixel (3,008 x 3,072 pixels), 3.5 lp/mm
- 6 second cycle time (Shot to shot)
- MTF (2.0 lp/mm, 70 kVp, 1x1) 30% typ., DQE (0), Quantum-Limited >70%
- Operating temperature +50° F to +95° F
- 14 bit A/D conversion
- 16 bit digital output (1000 Base-T)
- External X-Ray synchronization control (using included external synchronization device
More Information
SKU DV Choice
Shipping Method UPS
Condition New
International Shipping No
