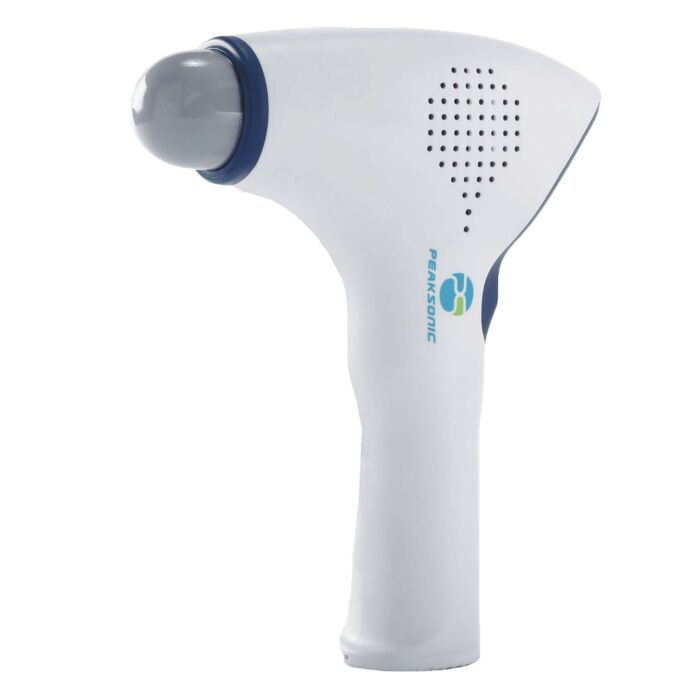

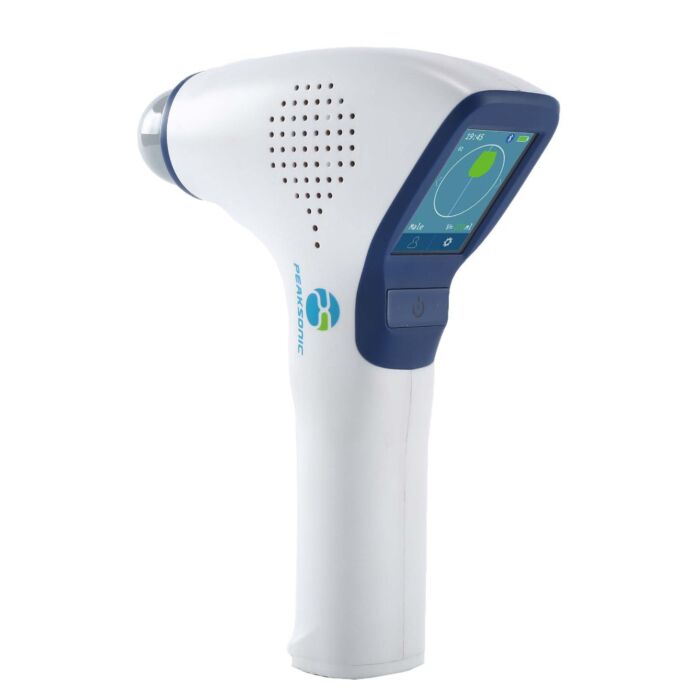

M2 Bladder Scanner

The M2 is an advanced handheld bladder scanner for versatile medical use that provides the basis for clinical catheterization, post-void residual assessment, and

diagnosis of bladder and kidney diseases. It's suitable for various medical departments and helpful for patients with lower body disabilities or loss of auto-urination function. Perfect for Primary Care, Ambulatory Surgery Centers, and Long-term Care Facilities.

Configuration: Comes with Portable Bladder Scanner, Li-ion Battery, Carrying Bag, Charger, Docking station, and one bottle 50 ml ultrasound gel.

Scan Modes: 3D Scan

Print Mode: Wireless Bluetooth Printer (Optional)

Working Mode(s): Easy, Expert, and Intelligence Mode

• Cases in Data Storage: 10,000
• Battery Life: 2.5 hours
• Probe Frequency: 2.5 MHz
• Screen size: 2.4 inches
• Touch screen
• Non-invasive 3D urinary bladder volume measurement
• Automatic Bladder Positioning
• Data Entry by Virtual Keyboard or Voice Annotation
• Volume measurement accuracy: ±7%
• Large data storage space: 10,000+ cases with built-in TF card
• Data Transmission: USB
• Rapid scanning, measurement results within seconds
• No annual calibration is needed
• 2-year warranty

Modes selection:

Users can choose from easy, expert, or intelligence mode. When performing a pre-scan, the operator will observe the following exam results:

• Move the probe until the center of the bladder image reaches the green line
• Press scan button once the biggest bladder section is detected
• Twelve real time bladder ultrasonic images will be displayed during scanning
• Results include a volumetric reading along with images and patient information
