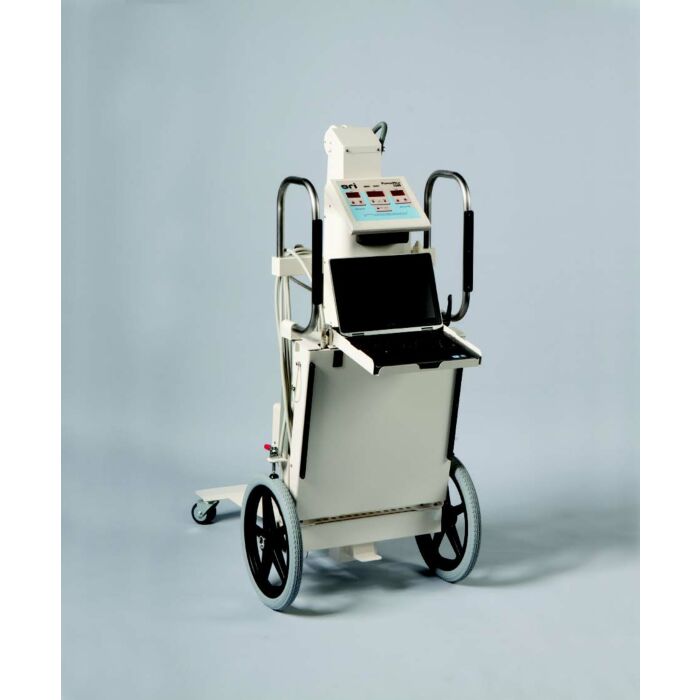

PowerMax 1260 Portable X-Ray Unit, analog or digital ready
PowerMax 1260, analog or digital ready
PowerMax 1260 provides the maximum power obtainable from a line powered portable with state of the art technology, system reliability and low maintenance, all in a small footprint, lightweight package. The PowerMax 1260 is a 120kV, 15-60mA system. With 3kW across the full range, it can reduce exposure times on difficult radiographic anatomical views, thereby minimizing patient motion problems and enhancing image quality. This model of PowerMax 1260 has a built in Cassette storage area that can accommodate up to seven standard 14"x 17" radiographic film cassettes or a 14"x17" detector. Optional Digital Ready Package Adds: 14" foldable laptop tray, Integrated panel / grid adapter storage box, splashproof panel holder, grid adapter with 6:1, 103 line pair grid, AC outlet for laptop charger, laptop charger compartment.
Features:
* Maximum Power Output (3.0 kW across full kV range)
* 120 kV, 15 - 60 mA
* High Frequency - Power Factor Correction
* Microprocessor Control
* Detachable Remote Hand Switch
* Analog imaging standard, digital ready option available.
* Light Weight
* Designed for Reliability
* Durable Powder Coat Finish
* Limited 3 year warranty
* Universal Input Voltage
PowerMax 1260, analog or digital ready
PowerMax 1260 provides the maximum power obtainable from a line powered portable with state of the art technology, system reliability and low maintenance, all in a small footprint, lightweight package. The PowerMax 1260 is a 120kV, 15-60mA system. With 3kW across the full range, it can reduce exposure times on difficult radiographic anatomical views, thereby minimizing patient motion problems and enhancing image quality. This model of PowerMax 1260 has a built in Cassette storage area that can accommodate up to seven standard 14"x 17" radiographic film cassettes or a 14"x17" detector. Optional Digital Ready Package Adds: 14" foldable laptop tray, Integrated panel / grid adapter storage box, splashproof panel holder, grid adapter with 6:1, 103 line pair grid, AC outlet for laptop charger, laptop charger compartment.
Features:
* Maximum Power Output (3.0 kW across full kV range)
* 120 kV, 15 - 60 mA
* High Frequency - Power Factor Correction
* Microprocessor Control
* Detachable Remote Hand Switch
* Analog imaging standard, digital ready option available.
* Light Weight
* Designed for Reliability
* Durable Powder Coat Finish
* Limited 3 year warranty
* Universal Input Voltage
| Description | Features | Benefits |
|---|---|---|
| Model SR-1260 | List Price: Call for latest pricing | High Frequency Inverter Provides Agile Lightweight Portability |
| Radiographic Applications | Designed with agility in mind for portable x-ray applications | Used in hospitals, medical centers, clinics, sport complexes, nursing homes, home health care, correctional facilities & military applications |
| Generator Type | High frequency Resonant Inverter Microprocessor controlled | 3.0 kW Output - Fully Regulated mA / kVp |
| KVP Range | 40 - 120 | Extremity Range - Adjustable in 1kVp steps |
| MA Range | 15 - 60 Selectable | Constant mA - Independent of kV or Time |
| MAS Range | 0.125 - 200 | Optimum Range - Provides quality soft tissue & bone resolution |
| Exposure Time | 0.01 - 3.33 Seconds | 96 steps - Provides accurate technique settings |
| X-Ray Tube | Stationary anode, 15° Target, 1.2 fs 30,000 Heat Unit Storage | Provides superior image quality & heat storage |
| Collimator | Collimare CP-100-24-C | 200° Rotation - High output lamp, Laser Indicators |
| Exposure Switch | 2 Position - Prep/X-Ray | 15' Cable |
| Mechanical Stand | Welded Aluminum construction | Light weight - Durable Powder Coat Finish |
| Tube Counter-Balance | Gas filled locking piston | Smooth Operation - Positive Lock |
| Rotational Movements | Needle Bearings, Adjustable Friction movements | Smooth Operation - Field Adjustable |
| Braking System | Heavy Duty - Manual Lever | Assures proper position is maintained |
| Cassette Storage | Standard Equipment | Seven Cassette Capacity - 14 x 17 |
| System Dimensions | Operation Mode 26"W x 42"L x 53"H Storage Mode 26"W x 53"Lx 28"H |
Agile - Extremely Maneuverable - Easy 2 step storage transport procedure |
| SID | 13" -79" (from floor) | Optimum Range - Weight bearing & Bed Work |
| Wheels | 16" Inflatable Heavy Duty Casters | Easily Climbs Stairs - Smooth Movement |
| Weight | 110 lbs. / 50 kg | Light Weight |
| Electrical Specifications | 110 VAC - 230VAC 50/60 Hz 230 VAC 50/60 Hz | Wide Operating Range - Plugs into standard outlet |
| Product Compliance | FDA 510 (k) | Certified to FDA 21 CFR Subchapter J |
| Warranty | Limited 3 Year | Covers Manufacturers Defects on Travel Stand, X-Ray Control & X-Ray Generator. X-Ray Tube and Collimator prorated. |
| SKU | 900064 |
|---|---|
| Shipping Method | Freight |
| Warranty | 3 years |
| Condition | New |
| Special Price | $19,690.00 |
| International Shipping | Yes |
