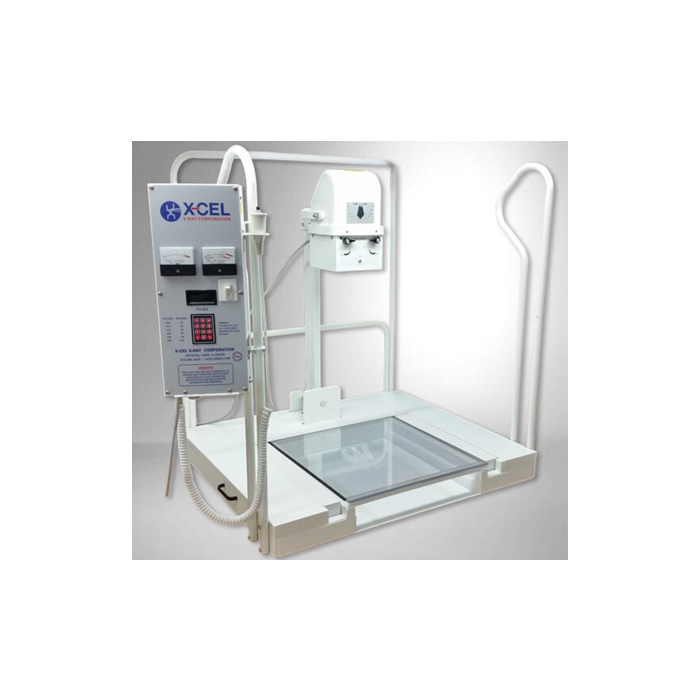

X-Cel 715-BDXC Series Podiatry X-Ray System

X-Cel bi-directional Podiatry x-ray system. Meets ADA standards with low base for tax credits. 15 degree tilt-head feature is fast and convenient for AP/DP views. The BDXC is the perfect unit for the podiatrist that is using film or CR and is expecting to go into DR in the near future. This unit accommodates film and CR options put when you are ready to transition to DR systems, the tray is removed and you are ready for the transition to DR panels. Receptor tray located under clear top keeps the receptor protected during standing feet exposures. The newest easy-to-use feature is the patented Tilt-Head, which enables the user to tilt the x-ray source. Made in the USA, warranty: 5 yr mechanical, 2 yr electrical & tube. 1 week manufacture lead time. Assembly is required.

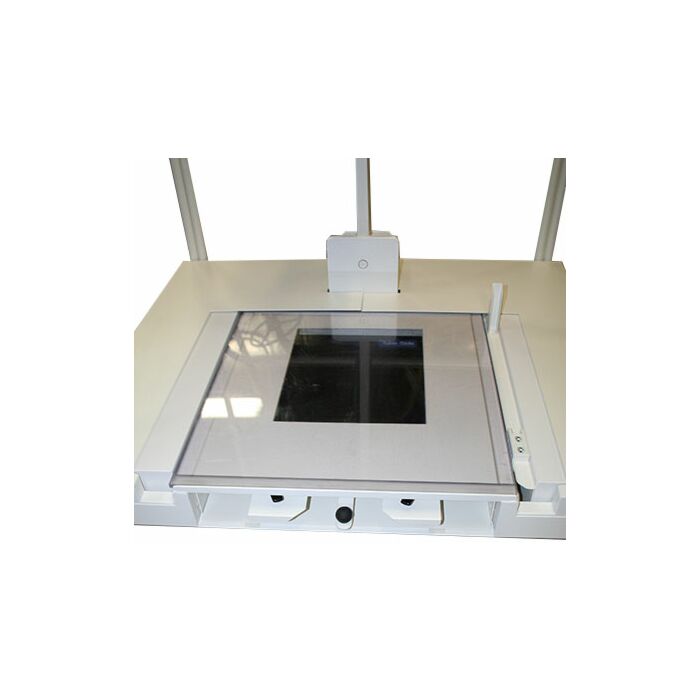

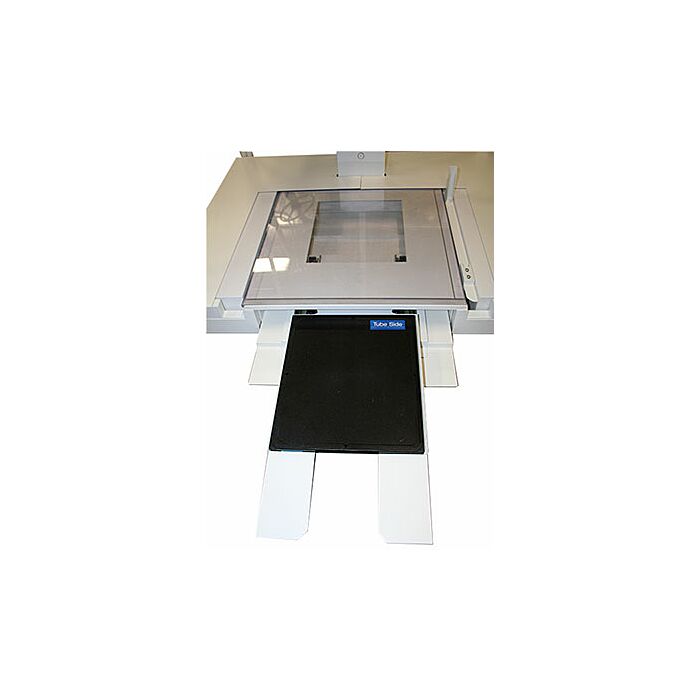

This system contains the x-ray portion only. Does not include an image receptor.

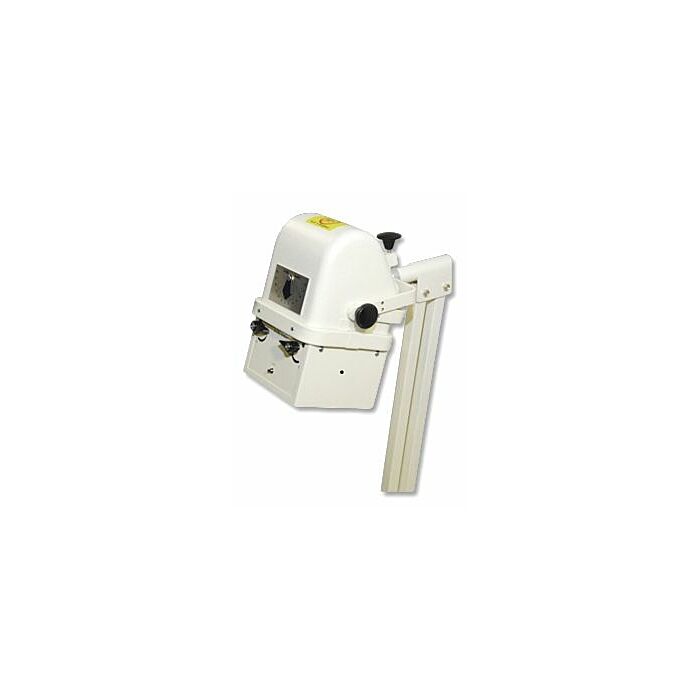

 Tilt-Head units:

• Eliminate the need to rotate the patient for the DP view
• Eliminate the need to rotate the arm for the AP view
• Eliminate the need to readjust the collimator lateral views
• Enable wheelchair patients to be easily accommodated without having to leave the wheelchair
• Features the low voltage expose switch with optional remote key box
• Include features that can meet ADA guidelines (consult your accountant)
• Patient support rail allows access from side or front
• ADA approved 3.5" base height
• Minimum 20.0 amp GFCI protected circuit is recommended
• Long-term current draw is less than 3.0 amps
• Momentary current draw is up to 20.0 amps
• 29" SID AP/Obliquee views
• 36" SID Lateral view
• Color - White

Click for Video
