ACR Accreditation Phantom "Digital" Full Field Mammography Phantom & Case

$1,498.00
3-5 Business Days
SKU
03-502-ST

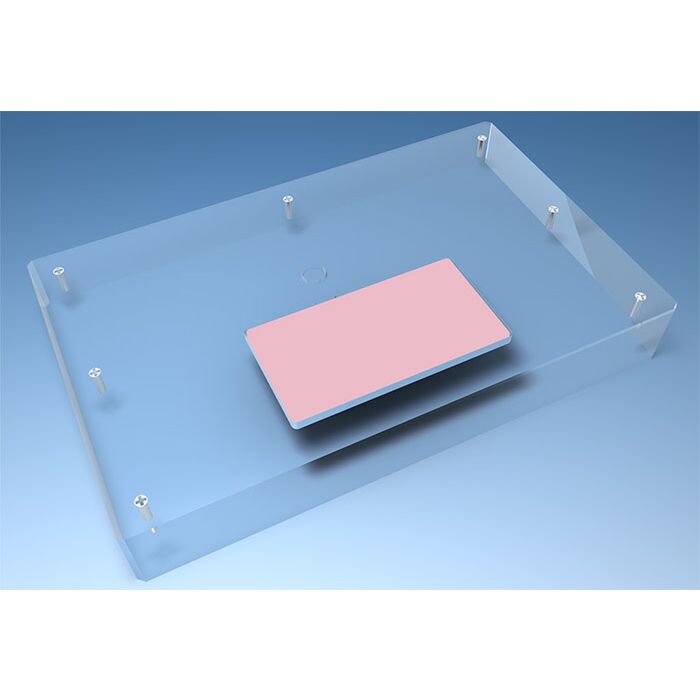

This Full Field phantom was designed to test the performance of a digital mammographic system by evaluating the system's ability to image small structures similar to those found clinically: micro-calcifications, fibrous structures in ducts and tumor-like masses. The FF (Full Field) version covers the entire image detector, thus eliminating scatter.

  • dimensions: 311.2 x 190.5 x 41.3 mm
  • simulates 42 mm compressed breast of average glandular/adipose composition (50%/50%)
  • wax insert:
    • nylon fibrils diameters: 0.89, 0.75, 0.61, 0.54, 0.40 and 0.30 mm
    • microcalcifications: 0.32, 0.28, 0.23, 0.20, 0.17 and 0.14 mm Al2O3 specks
    • tumor-like masses: 1.00, 0.75, 0.50, 0.38, 0.25 and 0.20 mm thick

Product features:

  • Complies with:
    • IEC 61223-3-2
    • Approved by ACR for Accreditation in USA
  • CE certified
  • the Manual provides detailed guidelines for carrying out each test, results assessment, and registration

This Full Field phantom was designed to test the performance of a digital mammographic system by evaluating the system's ability to image small structures similar to those found clinically: micro-calcifications, fibrous structures in ducts and tumor-like masses. The FF (Full Field) version covers the entire image detector, thus eliminating scatter.

  • dimensions: 311.2 x 190.5 x 41.3 mm
  • simulates 42 mm compressed breast of average glandular/adipose composition (50%/50%)
  • wax insert:
    • nylon fibrils diameters: 0.89, 0.75, 0.61, 0.54, 0.40 and 0.30 mm
    • microcalcifications: 0.32, 0.28, 0.23, 0.20, 0.17 and 0.14 mm Al2O3 specks
    • tumor-like masses: 1.00, 0.75, 0.50, 0.38, 0.25 and 0.20 mm thick

Product features:

  • Complies with:
    • IEC 61223-3-2
    • Approved by ACR for Accreditation in USA
  • CE certified
  • the Manual provides detailed guidelines for carrying out each test, results assessment, and registration
More Information
SKU 03-502-ST
Shipping Details 18x18x8 @ 13 lbs
Shipping Method UPS
Warranty 1 year
Condition New
Special Price $1,498.00
International Shipping No
