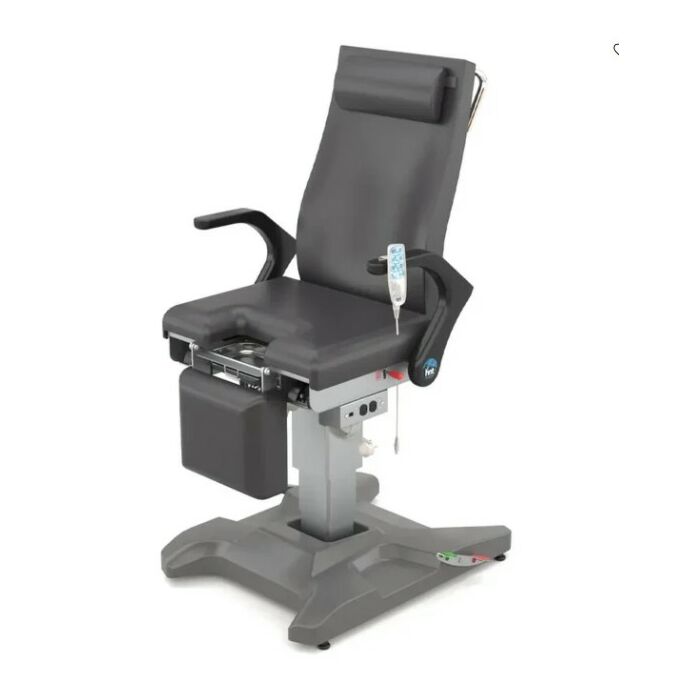

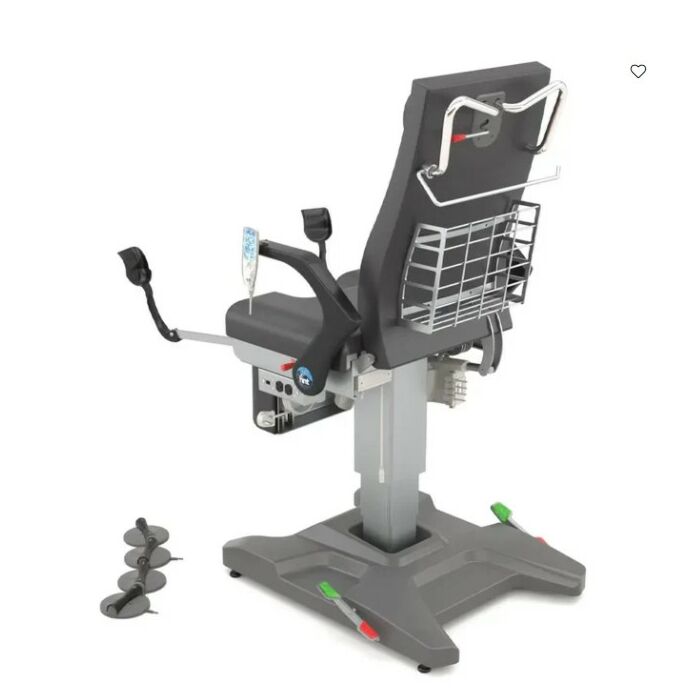

GYN Patient Procedure Exam Chair

The GYN Procedure Chairs is a versatile and self-sufficient piece of equipment designed for use in general gynecological procedural examination rooms and gynecological ultrasound rooms. It is well-suited for general examinations and minor procedures, offering a range of features to enhance both patient comfort and caregiver convenience.

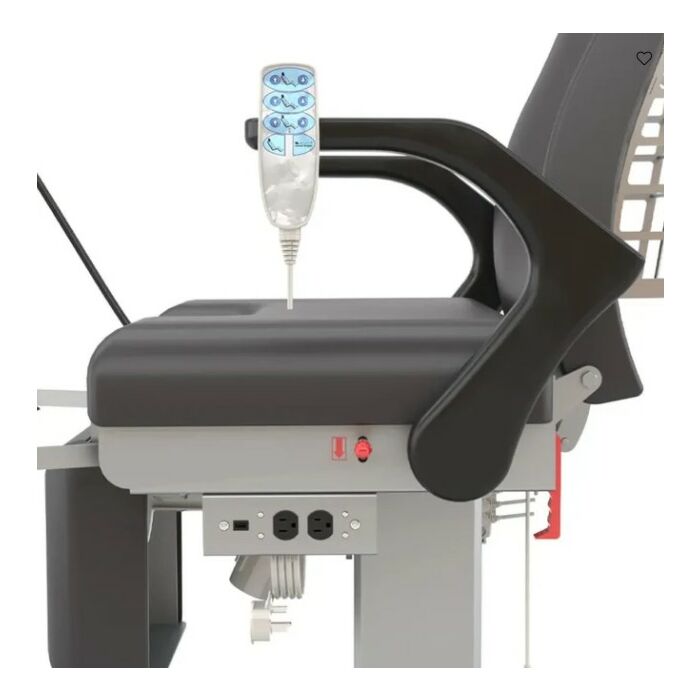

This Medical Procedure chair is equipped with stirrups, a tray, optional lighting, optional power outlet or USB port, this chair provides flexibility and functionality for various purposes. 4 Powered motors enable variable patient positioning, ensuring comfort during examinations and procedures in the doctor’s office. The hand control allows for easy adjustment of the backrest, leg rest, pelvic tilt, and height positioning features. Additionally, Manual adjustments can be made using the CPR lever, allowing for flat positioning for emergency needs. The chair has an adjustable table height of 19” to 39.5” and a maximum weight capacity of 700 lbs. (optional)

KEY FEATURES

Procedure Exam Chair 600043

o Power lift, back, foot, tilt
o 400 lbs. Weight Capacity (700 lbs. Maximum Bariatric Optional )
o 19”-40’’ Low Entry Height
o Available on flat base at 15”
o Retracting wheels for positioning and cleaning (not available on flatbase)
o Stirrups and tray
o Barrier-free adjustable armrest
o Power outlet supply (Hospital grade optional )
o Emergency CPR positioning lever
o Standard Colors (Black, Blue, Grey)

TECHNICAL SPECIFICATIONS

Seat Height (Flat base) :15’’ – 36’’
(Retracting Wheel base) : 19’’ – 40”
Width :30’’ (76 cm)
Length :74.5’’ (189,50 cm)
Back Section :21.6’’ (55 cm) wide x 31.4’’ (80 cm) long
Seat Section :24’’ (61 cm) wide x 17’’ (43 cm) long
Foot Section :15’’ (38,5 cm) wide x 14.2’’ (36 cm) long
Armrests Weight Capacity :90 lbs. (41 kg)
Back Section Tilt :0-90°
Foot Section Tilt :0-90°
Trendelenburg :0-13°
Weight of Chair :195 lbs. (89 kg)
Safe Load (Max) :400 lbs. (181 kg. ) optional: 700 lbs. (317 kg)
Electrical Requirements :110-230 VAC nominal,50-60HZ 5.8 amps max
