Europa Portable X-Ray System

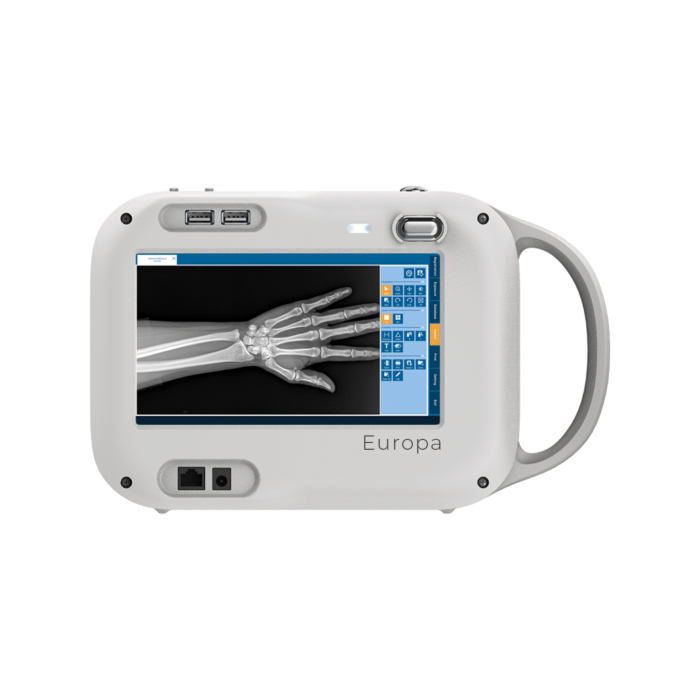

Europa (previously named Air Touch) is a portable handheld x-ray machine that includes an x-ray generator, tube and PC workstation built into a slim & compact design. The power of an X-Ray room in the size of a camera. A system designed to allow an operator to take x-ray images without the dedicated physical space or electrical power required for a conventional x-ray machine. More impressively, Europa can acquire images & wirelessly transmit to PACS via the on-board workstation.
Package includes a 14"x17" EVS Advanced Series wireless DR detector for digital image capture manufactured by DRTech. TRUVIEW ART advanced image reconstruction technology means better image sharpness. Reduces image scatter radiation improving image contrast and sharpness. Excellent dose reduction utilizing FOCUS scintillator technology. High DQE performance at low dose rates providing exceptional diagnostic clarity. Rugged design with attachable carrying handle, wireless connectivity to acquisition laptop. Wireless power charging station for the DR panel.
Manufacture provides all remote applications training.
Features:
- Fixed Technique: 60 kV, 2mA, adjustable Time: 0.03 ~ 1.30 seconds available
- X-ray tube enclosed, Model: Toshiba D 081B, 0.8mm focal spot, high Frequency, 100 kHz monoblock x-ray generator integrated system
- Lead shielded cone to help prevent scatter radiation, and protect the operator & patient,
size not currently adjustable - Laser light for precise alignment. Provides bright red dot on the center of the anatomy. Plugs directly into USB port of Europa. Can be turned ON/OFF via button located on the light
- Ultra-high-power battery technology. Standby battery life: 1 week. 2-hour charging time (from empty to full charge). CB test certified.
- Built in full version Windows 10 operating system
o Touch screen operation
o Two USB ports
o Wi-Fi & Bluetooth compatible. Send images directly from Europa to PACS, Email, Printer, Etc.
o TeamViewer pre-loaded for remote diagnostics
o Wireless Mouse for ease of the on-board PC - Carrying Case. Hard shell, lightweight carrying case with handle for ease of transport. Foam inserts for all possible product options and configurations. Lockable case with customizable numeric passcode
- Hand Switch. 2 Position Hand Switch with coiled cable. Connects directly to aspen Europa to allow for remote exposures.
- High quality 14"x17" wireless DR image receptor panel
- Image acquisition laptop with viewing software
- 3 year warranty on DR panel and laptop
- Europa Stand
- DR Panel Protector
Europa (previously named Air Touch) is a portable handheld x-ray machine that includes an x-ray generator, tube and PC workstation built into a slim & compact design. The power of an X-Ray room in the size of a camera. A system designed to allow an operator to take x-ray images without the dedicated physical space or electrical power required for a conventional x-ray machine. More impressively, Europa can acquire images & wirelessly transmit to PACS via the on-board workstation.
Package includes a 14"x17" EVS Advanced Series wireless DR detector for digital image capture manufactured by DRTech. TRUVIEW ART advanced image reconstruction technology means better image sharpness. Reduces image scatter radiation improving image contrast and sharpness. Excellent dose reduction utilizing FOCUS scintillator technology. High DQE performance at low dose rates providing exceptional diagnostic clarity. Rugged design with attachable carrying handle, wireless connectivity to acquisition laptop. Wireless power charging station for the DR panel.
Manufacture provides all remote applications training.
Features:
- Fixed Technique: 60 kV, 2mA, adjustable Time: 0.03 ~ 1.30 seconds available
- X-ray tube enclosed, Model: Toshiba D 081B, 0.8mm focal spot, high Frequency, 100 kHz monoblock x-ray generator integrated system
- Lead shielded cone to help prevent scatter radiation, and protect the operator & patient,
size not currently adjustable - Laser light for precise alignment. Provides bright red dot on the center of the anatomy. Plugs directly into USB port of Europa. Can be turned ON/OFF via button located on the light
- Ultra-high-power battery technology. Standby battery life: 1 week. 2-hour charging time (from empty to full charge). CB test certified.
- Built in full version Windows 10 operating system
o Touch screen operation
o Two USB ports
o Wi-Fi & Bluetooth compatible. Send images directly from Europa to PACS, Email, Printer, Etc.
o TeamViewer pre-loaded for remote diagnostics
o Wireless Mouse for ease of the on-board PC - Carrying Case. Hard shell, lightweight carrying case with handle for ease of transport. Foam inserts for all possible product options and configurations. Lockable case with customizable numeric passcode
- Hand Switch. 2 Position Hand Switch with coiled cable. Connects directly to aspen Europa to allow for remote exposures.
- High quality 14"x17" wireless DR image receptor panel
- Image acquisition laptop with viewing software
- 3 year warranty on DR panel and laptop
- Europa Stand
- DR Panel Protector
| SKU | EUROPA |
|---|---|
| Shipping Details | 19x13x12 @ 18 lbs, 27x27x11 @ 30 lbs |
| Shipping Method | UPS |
| Warranty | 1 year |
| Condition | New |
| Special Price | $29,900.00 |
| International Shipping | Yes |
