Quattro II™ Professional Electrotherapy Device
The microprocessor controlled Quattro II™ is a professional four-channel electrotherapy device that provides IF 4-Pole, IF 2-Pole, Russian, EMS and TENS waveform. Its portable design lets you take it to your patient or keep it at the clinic. It’s easy to use and up and running within minutes, and its advanced operating system ensures a complete range of therapy no mater where you use it.
Product Features:
• Four channels of electrical stimulation output
• Large easy-to-read graphical LCD display with exact dial performance and programmable timer
• Waveforms include TENS, EMS, 2-Pole Interferential, 4-Pole Interferential and Russian
• 10 presets per waveform totaling 50 presets
• User defined memory positions for user protocols
• Designed for tabletop, therapy cart or mobile use
• Includes eight sets of electrodes, eight sets of rubber electrodes with sponges, eight straps, four sets of lead wires and a user manual
• Maximum treatment time of 60 minutes on all waveforms
• Product dimensions: 10 ½” (W) x 15” (L) x 8” (H)
• Product weight: 6.7 lb
• Two year warranty
Product Features:
Product Specifications:
General Unit Specifications
Waveform:
IFC-4P, IFC-2P, TENS, EMS and Russian
Pulse Width:
30-400 μS
Frequency:
1 MHz and 3 MHz for ultrasound, 1-250 Hz for LF, beat frequency for IF: 1-150 Hz, carrier frequency for IF: 4K Hz, carrier frequency for Russian: 2.5K Hz
Power Supply:
Adaptor, input 100-240V 50/60Hz, output 15V/3A
Intensity:
Max 3W/CM2 (pulse) for ultrasound, 0-50mA for IF (1KΩ), 0-100mA for LF (1KΩ)
Working Time:
Max 60 minutes for IF, Max 30 minutes for
ultrasound and combo
Dimensions:
9.8” x 7.3” x 3.2”
Weight:
5.5 lb.
Working Environment:
Temperature: 10˚C - 40˚C
Humidity: 30% RH to 85% RH
Atmospheric Pressure: 800hPa - 1060hPa
Storage Environment:
Temperature: 10˚C - 55˚C
Humidity: 20% RH to 85% RH
Atmospheric Pressure: 700hPa - 1060hPa
Item #
Description
Qty
DQ7844

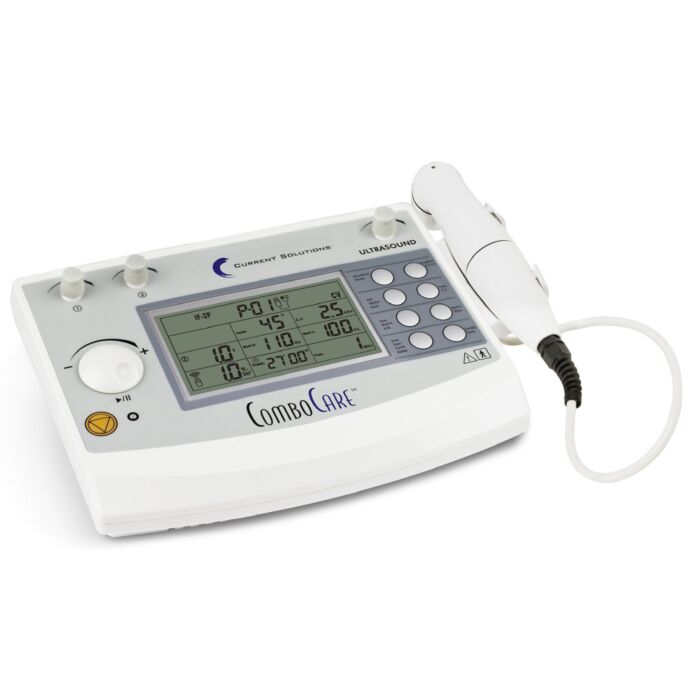

ComboCare™ E-Stim and Ultrasound Combo Professional Device
each
• Portable therapy - provide ultrasound and e-stim simultaneously, great for treating trigger points
• Two channels of electrical stimulation output
• Large easy-to-read graphical LCD display with exact dial performance and programmable timer
• Waveforms include TENS, EMS, 2-Pole Interferential, 4-Pole Interferential and Russian
• Dual clinical ultrasound features a 5 cm2 sound head which offers1 MHz and 3 MHz frequencies
• Ultrasound has 10% - 100% duty cycle selections
• 10 presets per waveform
• 20 ultrasound presets
• User defined memory positions for user protocols
• Designed for tabletop, therapy cart or mobile use
• Includes eight sets of electrodes, eight sets of rubber electrodes with sponges, eight straps, four sets of lead wires and a user manual
• Product dimensions: 10 ½” (W) x 15” (L) x 8” (H)
• Product weight: 6.7 lb
• Two year warranty
Product Specifications:
General Unit Specifications
Waveform:
IFC-4P, IFC-2P, TENS, EMS and Russian
Pulse Width:
30-400 μS
Frequency:
1 MHz and 3 MHz for ultrasound, 1-250 Hz for LF, beat frequency for IF: 1-150 Hz, carrier frequency for IF: 4K Hz, carrier frequency for Russian: 2.5K Hz
Power Supply:
Adaptor, input 100-240V 50/60Hz, output 15V/3A
Intensity:
Max 3W/CM2 (pulse) for ultrasound, 0-50mA for IF (1KΩ), 0-100mA for LF (1KΩ)
Working Time:
Max 60 minutes for IF, Max 30 minutes for
ultrasound and combo
Dimensions:
9.8” x 7.3” x 3.2”
Weight:
5.5 lb.
Working Environment:
Temperature: 10˚C - 40˚C
Humidity: 30% RH to 85% RH
Atmospheric Pressure: 800hPa - 1060hPa
Storage Environment:
Temperature: 10˚C - 55˚C
Humidity: 20% RH to 85% RH
Atmospheric Pressure: 700hPa - 1060hPa
