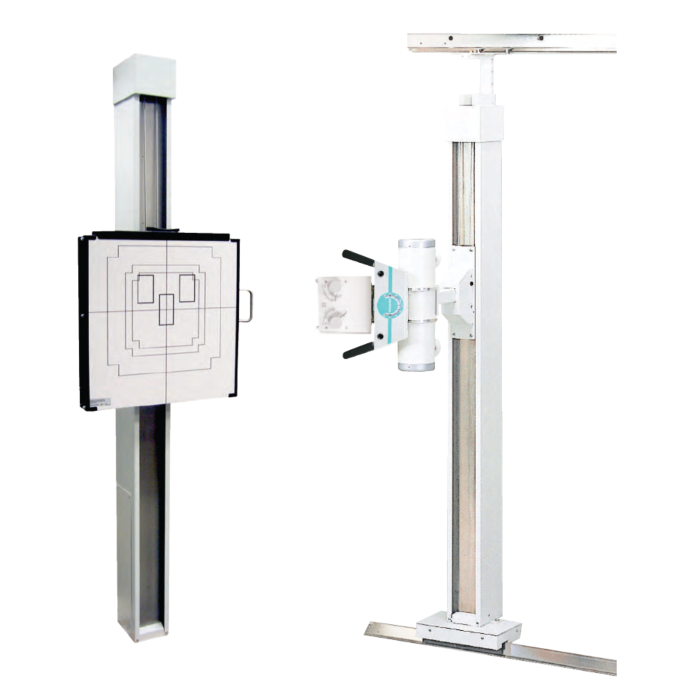

Universal Medical - Chiropractic X-Ray

$0.00
CALL FOR PRICING
SKU
Raymaster

Features

Universal uniquely combines economy and flexibility in a system designed to meet specialized and individual professional radiographic needs. The Universal Raymaster system is thoroughly at home in private, group, or clinical applications. It provides full radiographic capabilities, from skull to weight bearing studies.

Benefits

Key benefits of the Universal Upright Raymaster include:

  • Mounts floor-to-wall or floor-to-ceiling
  • Tube rotation enables precision alignment of the tube for non-angled, angled and upright views.
  • Convenient display gives indication of tube rotation

Features

Universal uniquely combines economy and flexibility in a system designed to meet specialized and individual professional radiographic needs. The Universal Raymaster system is thoroughly at home in private, group, or clinical applications. It provides full radiographic capabilities, from skull to weight bearing studies.



Benefits

Key benefits of the Universal Upright Raymaster include:

  • Mounts floor-to-wall or floor-to-ceiling
  • Tube rotation enables precision alignment of the tube for non-angled, angled and upright views.
  • Convenient display gives indication of tube rotation

Tech Specs



VS100 Wall Stand



Wall stand height: 86.75in (220.4cm)
Receptor height: 23.38in (59.4)
Vertical travel range: 58.38in (148.28cm)
Wall stand width (with receptor): 23.25in (59cm)
Wall stand depth (with receptor): 13in (33cm)
Maximum focal spot height: 72.38in (183.84cm)
Minimum focal spot height: 14in (35.6cm)
Front panel aluminum equivalency: 0.4mm
Weight: 258lb (117kg)
Power requirements: 24VDC



3307 Tube Stand



Min. vertical travel: 14.5in (37cm)
Rails: 6ft longitudinal floor and ceiling rail set allows for 40in (100cm) and 72in (180cm) film distances
Maximum ceiling height: 114in (274cm)
Minimum ceiling height: 94in (233cm)
Tube rotation: 180° tube rotation about the horizontal axis



System Options



- Choice of high frequency or single phase generators to meet specific needs
- 10:1 or 12:1 ratio grids for analog or digital imaging
- 17in x 17in (43cm x 43cm) grid cabinet or bucky
- Ion chamber (AEC)
