Description / Universal DC Choice
Features

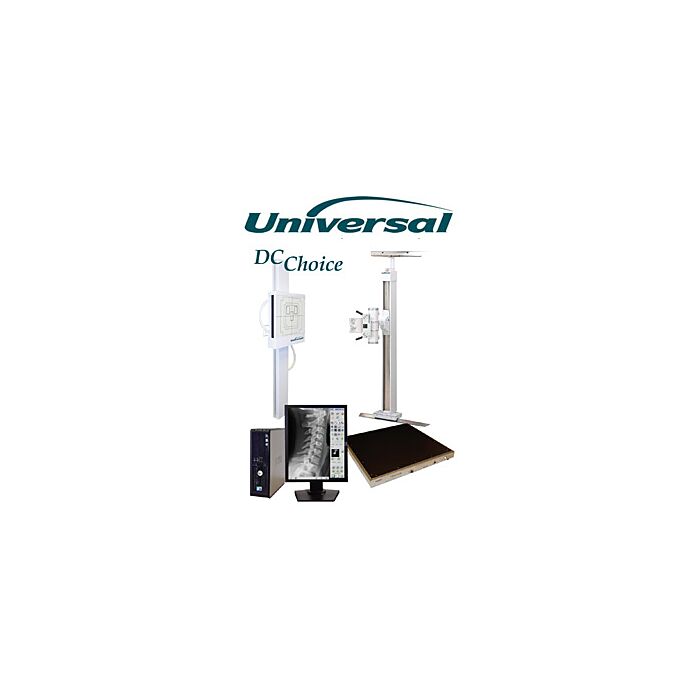

| The DCChoice is an affordable, cost effective flat-panel digital x-ray system that requires considerably less space than bulky CCD systems. The flat-panel detector is housed in our slim design wall stand with a depth of only 12.25 inches. The side mounted patient hand grips aide patient stabilization. A floor-wall / floor-ceiling tube stand with electromagnetic locks and angulating tube arm make image acquisition easy and efficient. |
Benefits
Key benefits of the Universal DC Choice include:
|
Tech Specs
DelWorks Acquisition Station Hardware
| - Dell Optiplex 780 Small Form Factor Computer with Intel Core 2 Duo 3.0GHz, 4GB RAM, weight 15 lbs. (6.80 kg), keyboard and mouse - 19" touch screen, flat-panel display, weight 18.74 lbs. (8.5 kg). Rotates 90 degrees landscape/vertical. Approved for medical use, complies with international medical safety and emission standards (CE, UL,EN, etc.) - Active screen diagonal 19 in. (483 mm); width 14.80 in. (376 mm); height 11.85 in. (301 mm) - Pixel pitch 0.294 mm, 16.8 million colors |
DelWorks DR Detector Toshiba FDX4343R
| - Cesium Iodide (CsI) Scintillator with Amorphous Silicon (a-Si) Photodiode - 17" x 17" detector size (512 x 495 x 43mm), 16.9 x 17.3 inch active area - 143um pixel size - 9 megapixel (3,008 x 3,072 pixels), 3.5 lp/mm - 6 second cycle time (Shot to shot) - MTF (2.0 lp/mm, 70 kVp, 1x1) 30% typ., DQE (0), Quantum-Limited >70% - Operating temperature +50° F to +95° F - 14 bit A/D conversion - 16 bit digital output (1000 Base-T) - External X-Ray synchronization control (using included external synchronization device |
More Information
| SKU | DC Choice |
|---|---|
| Shipping Method | UPS |
| Condition | New |
| International Shipping | No |
Product Attachments
Write Your Own Review
