Ridges Internal Rotation

Problem?

• Central area not representative of periphery ?
• Over-saturated signal ?
• Motion ?
• Localization and measurements of lesion ?

Solution?

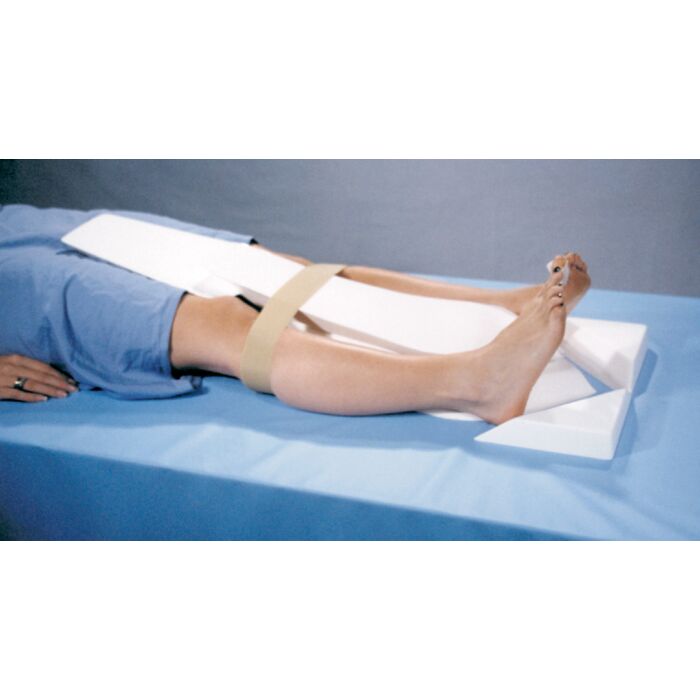

• Five tailored silicone rubber filters ensure an homogenous density over a 35 cm width, from the pubis to the feet.
• Filters adhere to the table and the patient, and with supplied Velcro® straps, they provide immobilization with the great toes in contact and the heels separated by a wide inter-legs filter.
• For unilateral or bilateral examinations.
• Two opaque rulers are incorporated in the midline filters.
• With or without substraction (DSA and DA).
• Also used for veinography.

Specifications:

• Material : silicone rubber.
• Absorption: twice that of water.
• Wedge: nearly 45° all around.
• Number: five (5) components. Sizes (max.): l x w x h in cm.
  • Main inter-legs filter: 66 x 22.5 x 6.5;
  • Accessory inter-legs filter: 606 x 22.5 x 4.5;
  • Inter-thighs filter: 31 x 20.5 x 6;
  • Two triangular feet filters: 27 x 13 x 4.5.
• Shipping weight: 11.6 kg approximately.
• Opaque rulers: 25-cm in inter-thighs; 30-cm in main inter-legs.
• Velcro® straps, 5 cm wide: 60 cm for ankles; 90 cm for knees as well as a self-adhesive strap of 5 cm X 72 cm

Warning

Must be used only by qualified personnel, according to appropriate procedures, and under the responsibility of a physician.
OCTOSTOP® Inc. and its personnel do not assume any liability regarding the use, indications, consequences, or any situation directly or indirectly related to its products.
