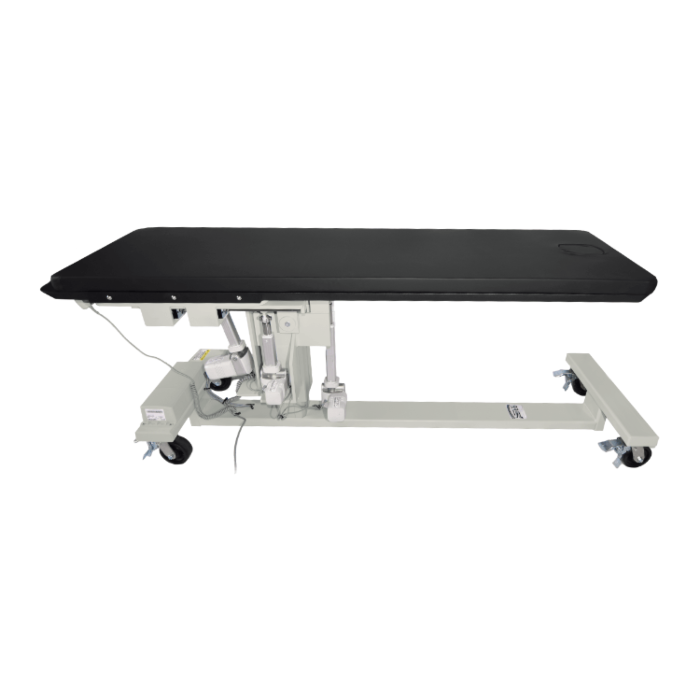

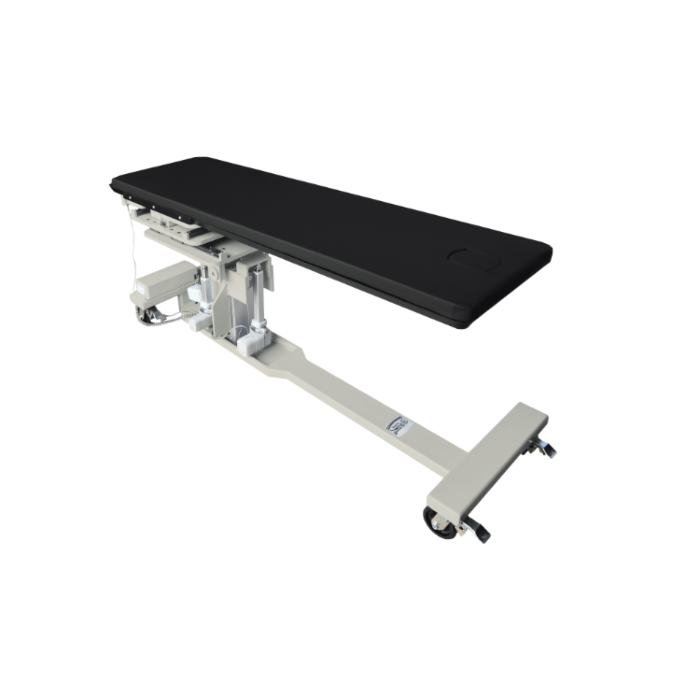

Streamline Series C-Arm Table - SL-5

The Streamline surgical table series is intended to be used with mobile x-ray units for minimally invasive procedures on patients as large as 500 lbs. Radiolucent area is 56”L x 24”W unobstructed. Comes with 2” thick mattress for patient comfort and hand control that activates all motions. 4-year limited warranty on non-electrical parts and 1 year warranty on electrical components.

Streamline imaging tables feature:

• Carbon fiber, diving board style for easy C-arm access
• Large patient capacity – high-end actuator motor supports 500-pound loads
• An 84″ length can accommodate even the tallest of patients
• A 24″ top eliminates the need for arm boards
• Tabletop and mattress attenuation 1.6mm Al.
• Extreme low position makes boarding patients fast, easy and safe
• Two-inch thick, high quality patient comfort pad
• Facial cut-out for prone procedures
• Light weight – easy to physically move the table within the room or from room to room
• Simple to use, high quality wheel locks and 5” castors
• Patients straps: 2
• Remote controls are standard with the Streamline tables.
• Height Buttons: support raising and lowering the table top

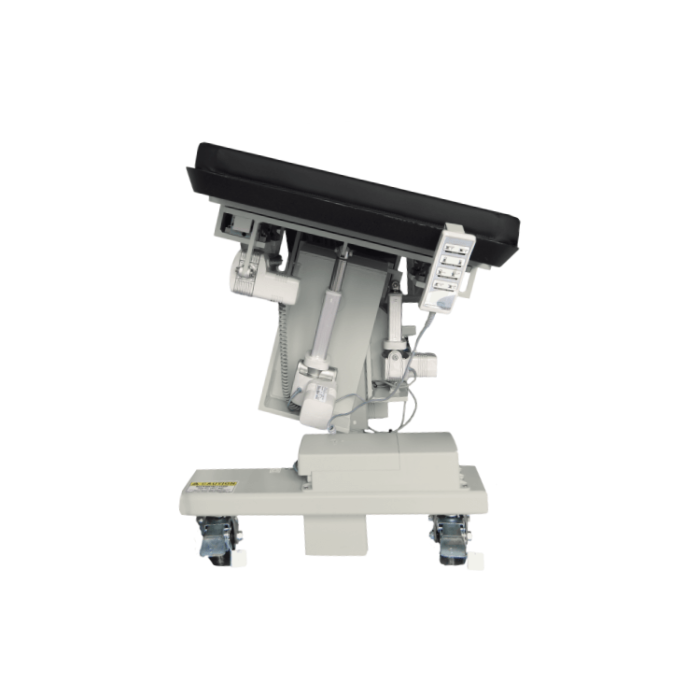

• Lateral Tilt Buttons: control the lateral angle of inclination.
• Longitudinal travel buttons: move the table top in the longitudinal direction
• Lateral Travel Buttons: controls table movements in the lateral direction.
• All Streamline imaging tables with motorized movements require 120 VAC power for operation.
• Height (33.5″ to 43.5″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), longitudinal travel (10″, +/- 5″), and lateral travel (10″, +/- 5″) adjustments
