Biodex Pain Management C-Arm Table

Professional Class Equipment for Pain Care Applications

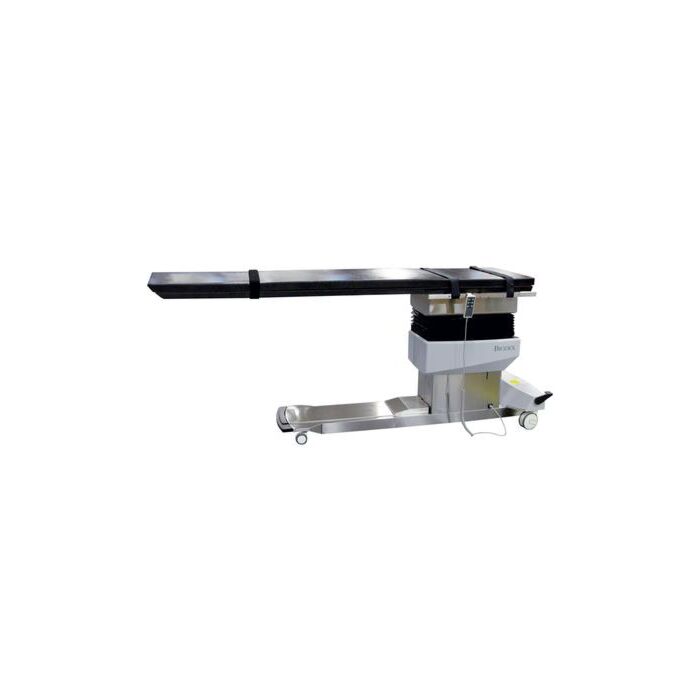

The Pain Management C-Arm Table – 870 is designed for image-guided procedures where stability, access, and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon-fiber tabletop, with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. The standard contoured top allows ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. The rectangular top offers additional space to allow for superior image quality for long-leg runoff studies. Choose a tabletop to best fit your needs to achieve optimum image resolution.

The large radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening. The contoured tabletop features a face cutout for prone positioning.

Stable, Accessible and Vibration Free
Automatic Positioning
A portable hand-held or optional foot-operated controller can be positioned for convenient access from any point around the table. Both controllers offer the freedom to adjust height, lateral roll and Trendelenburg motions. The foot-operated controller can be used when hands are busy with other functions.

Innovative design optimizes patient access, increases imaging resolution and save space.

• Carbon-Fiber Tabletop – 0.7 mm attenuation (1.2 mm with pad) design
• Choice of Contoured or Rectangular Design – Contoured tabletop features a face cutout for comfortable prone positioning
• Radiolucent Area – Large, 70"
• Isocentric Lateral Roll Motion – Maintains image center during tabletop movement, minimizing image distortion
• High-Speed Actuators – Assure quick tabletop positioning, height adjustability, isocentric lateral roll and Trendelenburg motions
• Table Base – Encased in stainless steel, easy to clean
• Hand and Optional Foot-Operated Controllers – For convenient positioning
• Patient Capacity – 500 lb
• Low Profile Base – For unrestricted C-arm movement
• Accessory Rails

• Dimensions:
  - Overall: 97" l x 26" w (246 x 66 cm) with OR accessory rails
  - Tabletop: 97" l x 24" w (246 x 61 cm) – choice of classic contoured or rectangular design
• Radiolucent Area: 70" l x 24" w (178 x 61 cm)
• Tabletop Material: Carbon fiber with integral head section
• Mattress: Seamless, 2" thick (5 cm)
• Attenuation: 1.2 mm Aluminum equivalence
• Motions:
  - Height Adjustable: 29.5" to 39.5" (75 to 100 cm)
  - Trendelenburg: 0° to 20°
  - Reverse Trendelenburg: 0° to 20°
  - Isocentric Lateral Roll: 15° clockwise or counterclockwise
• Controls:
  - Hand Control: activates height, isocentric lateral roll and Trendelenburg motions
  - Foot Control (optional): activates height, lateral roll and Trendelenburg motions
• Accessory Rails: Standard OR accessory rails 30" x 1.12" x .375" (75 x 2.86 x .95 cm) mounted near foot end of table
• Patient Restraints: Three body straps
• Finish: Stainless Steel
• Patient Capacity: 500 lb (227 kg)
• Shipping Weight: 749 lb (340 kg)
• Power: 115 VAC or 230 VAC
• Certifications: ANSI/AAMI ES60601-1:2005 +C1 (2009) +A1 (2012) +A2 (2010); CAN/CSA C22.2 No: 60601-1:14; CAN/CSA-C22.2 NO. 60601-2-46:12; IEC 60601-1-2-46:2016.
