It is well known that x-rays used for surgical planning vary in magnification. This variation exists in part because of the diversity of techniques used by x-ray technologists, patient positioning, and the patient’s size. Even with strict imaging protocols, the magnification of an x-ray image can vary. A thin patient lying on an imaging receptor is only a few inches above the plate, giving little distance for the X-rays to diverge. In a larger patient, the distance may be twice as far from the plate, allowing the divergent beam to spread much more before it hits the plate. This can result in a magnification factor of approximately 20%. Scaling an x-ray image is mandatory to assure the highest level of accuracy throughout the planning process, especially orthopedic templating. Does size matter when it comes to magnification of an x-ray and surgical planning? Absolutely! Preoperative planning aims to reduce the risk of intraoperative fracture and decrease overall surgical time. Images that are used for surgical planning must be accurately scaled to allow for accurate implant selection.

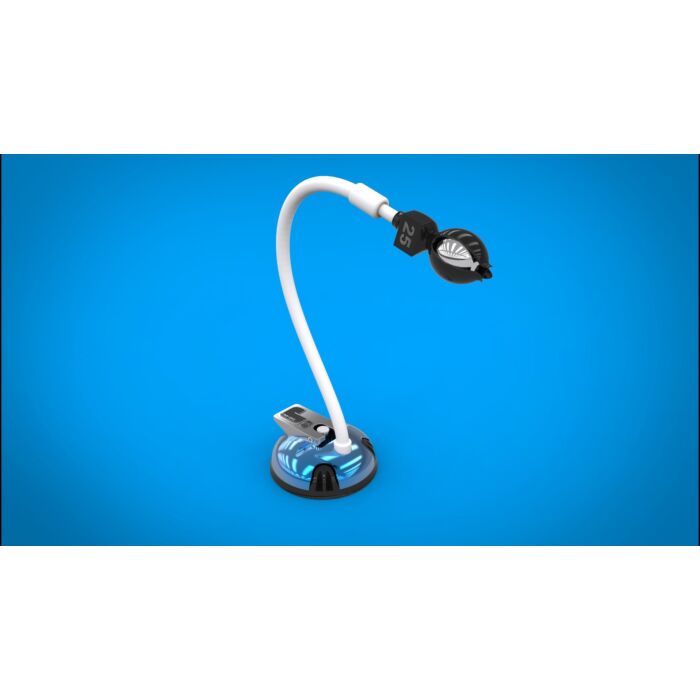

Akucal EVO Image Scaling Device
Tried and True Scaling a digital image is mandatory in order to assure the highest level of accuracy throughout the pre-surgical and orthopedic templating process. The Akucal is the best selling x-ray image scaling tool in the world and is trusted by the best. Functionality, durability, sanitation and passion for perfection come standard.

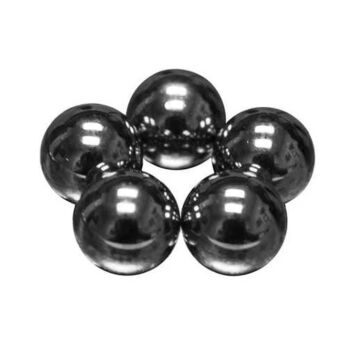

Perfectly Precise. Rollr Precision Markers are made of solid surgical stainless steel and will not “burn out” in an image like others on the market. The spherical calibration marker as well as the holder can both be autoclaved for sanitation purposes.
Uncommon Sense. The person who captures the image is rarely the person who scales the image. Only the Akucal offers a radiopaque numerical indicator that specifies the size of the calibration marker and is visible in every image. This reduces confusion and increases imaging workflow.
Flexibility Covered…Literally. The Akucal’s flexible arm is perfect for positioning the calibration marker at anatomy level. It is covered with a smooth, crevice free surface which allows for easy sanitation. Rest assured that every part is removable and replaceable on demand. The flexible arms length is 13 in.
One Tool Scales All. Our custom suction cup base is small yet maneuverable and allows for it to be used vertically on wall boards and horizontally on tables. The small footprint of the Akucal does not impede the patient, the tech, nor limit its use.
Breaking the Seal. The Akucal is the ONLY x-ray scaling tool that offers a patented, silicon suction cup base; a suction so strong most are amazed at it’s strength. And to top it off, it too can be autoclaved for sanitation purposes if needed.

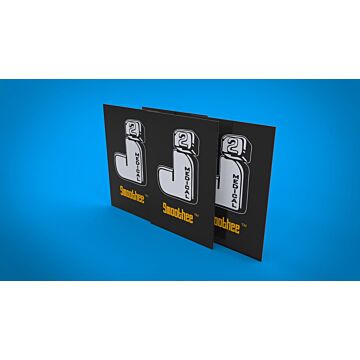

Please be advised that a smooth flat surface is essential for best results. We offer Smoothees below that address this issue.
Available in 25mm, 25.4mm and 30mm markers
Tried and True Scaling a digital image is mandatory in order to assure the highest level of accuracy throughout the pre-surgical and orthopedic templating process. The Akucal is the best selling x-ray image scaling tool in the world and is trusted by the best. Functionality, durability, sanitation and passion for perfection come standard.
Perfectly Precise. Rollr Precision Markers are made of solid surgical stainless steel and will not “burn out” in an image like others on the market. The spherical calibration marker as well as the holder can both be autoclaved for sanitation purposes.
Uncommon Sense. The person who captures the image is rarely the person who scales the image. Only the Akucal offers a radiopaque numerical indicator that specifies the size of the calibration marker and is visible in every image. This reduces confusion and increases imaging workflow.
Flexibility Covered…Literally. The Akucal’s flexible arm is perfect for positioning the calibration marker at anatomy level. It is covered with a smooth, crevice free surface which allows for easy sanitation. Rest assured that every part is removable and replaceable on demand. The flexible arms length is 13 in.
One Tool Scales All. Our custom suction cup base is small yet maneuverable and allows for it to be used vertically on wall boards and horizontally on tables. The small footprint of the Akucal does not impede the patient, the tech, nor limit its use.
Breaking the Seal. The Akucal is the ONLY x-ray scaling tool that offers a patented, silicon suction cup base; a suction so strong most are amazed at it’s strength. And to top it off, it too can be autoclaved for sanitation purposes if needed.
Please be advised that a smooth flat surface is essential for best results. We offer Smoothees below that address this issue.
Available in 25mm, 25.4mm and 30mm markers
The Akucal x-ray scaling tool is patented, CE marked, and is a class 1 medical device registered with the Food & Drug Administration (FDA); current registration number 3010104777
The Akucal x-ray scaling tool is provided unsterile. The sphere, and only the sphere, can be autoclaved AND MUST BE COMPLETELY REMOVED FROM THE DEVICE. The entire Akucal must be properly cleaned with disinfectant and should be regularly inspected for any signs of wear or damage. Use caution when using the device for any existing pinch points. The Akucal x-ray scaling tool should not come into direct contact with the patient.
| SKU | ES |
|---|---|
| Shipping Method | UPS |
| Warranty | 1 year |
| Condition | New |
| Special Price | $485.00 |
| International Shipping | Yes |
