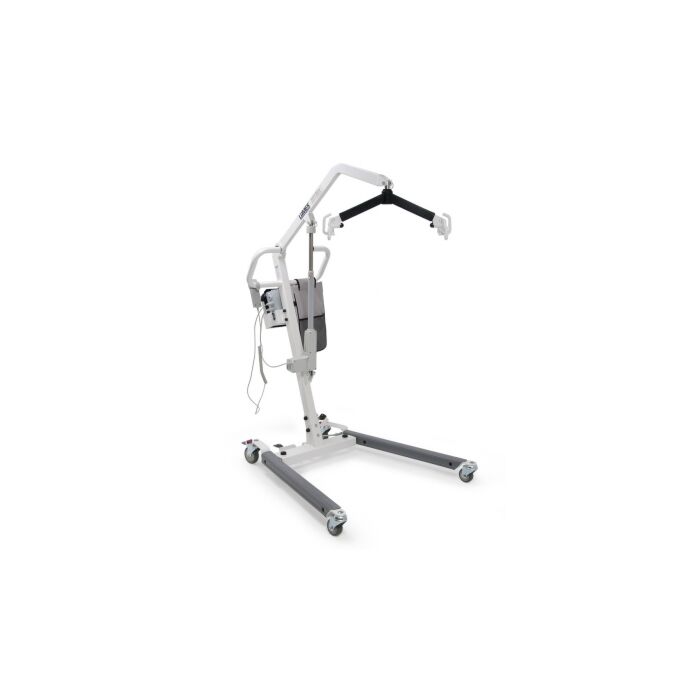

Lumex Battery-Powered Patient Lift

• Heavy gauge steel construction with white powder-coated finish and rubber-coated low base legs protect furniture and walls

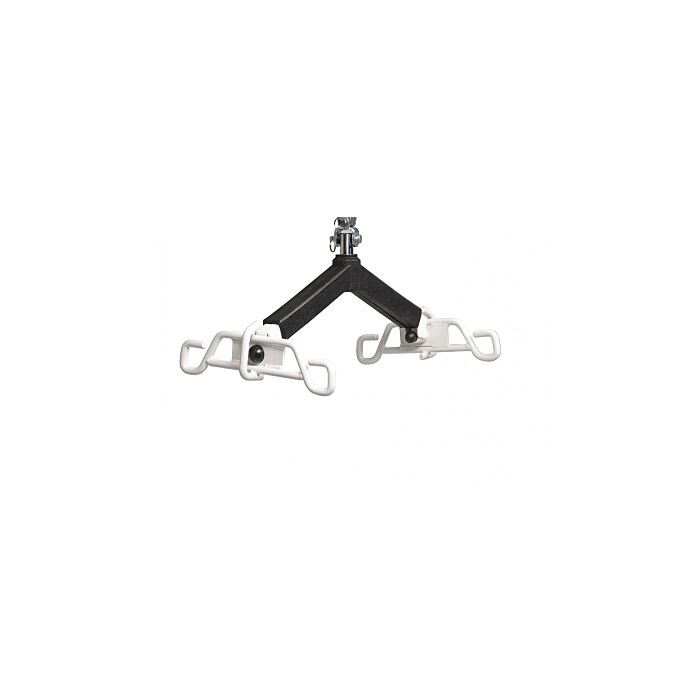

• Six point spreader bar with 360° rotation accommodates 2-, 4-, or 6-point slings
• Large, easy to grip handles for easy maneuverability
• Intuitive foot pedal leg opening mechanism frees up hands

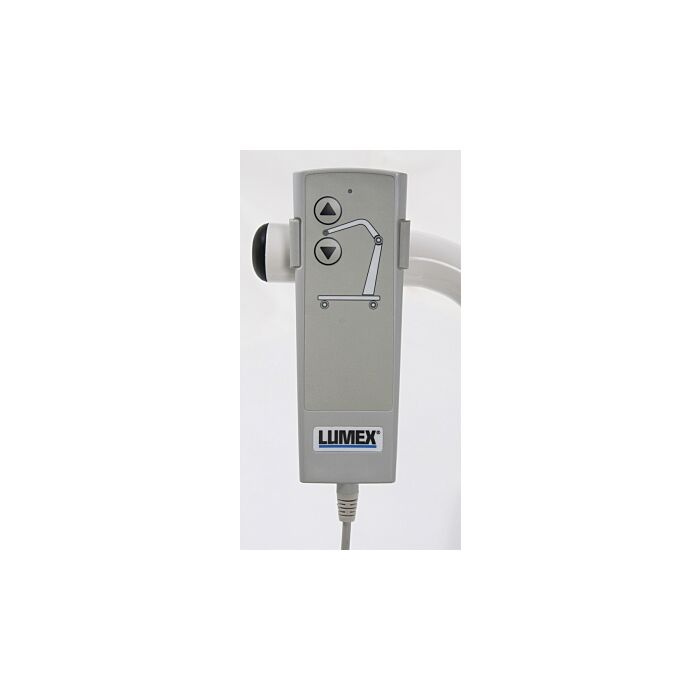

• Ergonomic hand pendant with hook
• Emergency stop button and manual lowering mechanism
• Warning beep and visual indicator on control box for low battery charge (24V DC motor)
• Accessory storage bag and how-to-use video included
• Optional digital scale DSC250
• Designed to meet the requirements of HCPCS Code E0635

Warranty:

• Frame and spreader bar: Three (3) year limited
• Actuator: Two (2) year limited
• Batteries: One (1) year limited

Specs

• Floor Clearance - 4.7"
• Spreader Bar Minimum Height from Sling Attachment - 27.5"
• Spreader Bar Maximum Height from Sling Attachment - 68.1"
• Overall Length - 40.2"
• Minimum Base Width (outside) - 26"
• Maximum Base Width (outside) - 37.8"
• Safe Working Load - 400 lb
• Product Weight - 114.5 lb

Fabric Full Body Sling Options

• Fully padded fabric that offers a soft yet supportive surface
• Offers full head and neck support
• For use with 4-point spreader option
• Designed to meet the requirements of HCPCS code: E0621

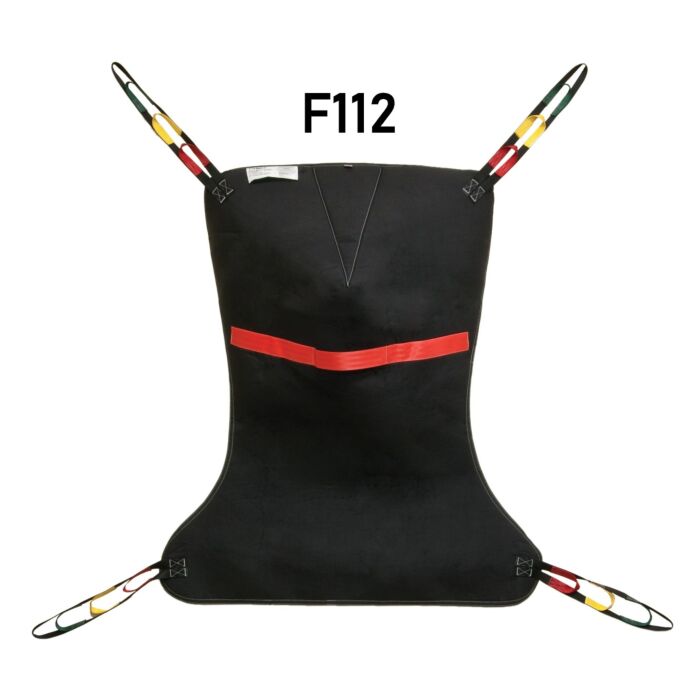

• F112 Medium, 42.75 X 50.75, 450 # Capacity
• F113 Large, 44.75" X 54.25", 450 # Capacity
• F117 X-Large, 44.75" X 60.25", 450 # Capacity

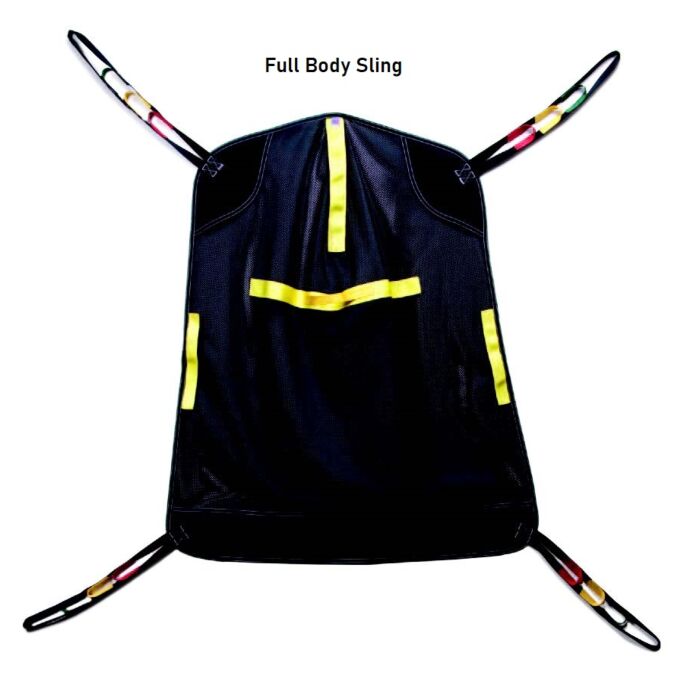

Mesh Full Body Sling Options

• Quick draining/drying mesh fabric offers full head and neck support
• For use with 4-point spreader option
• Designed to meet the requirements of HCPCS code: E0621

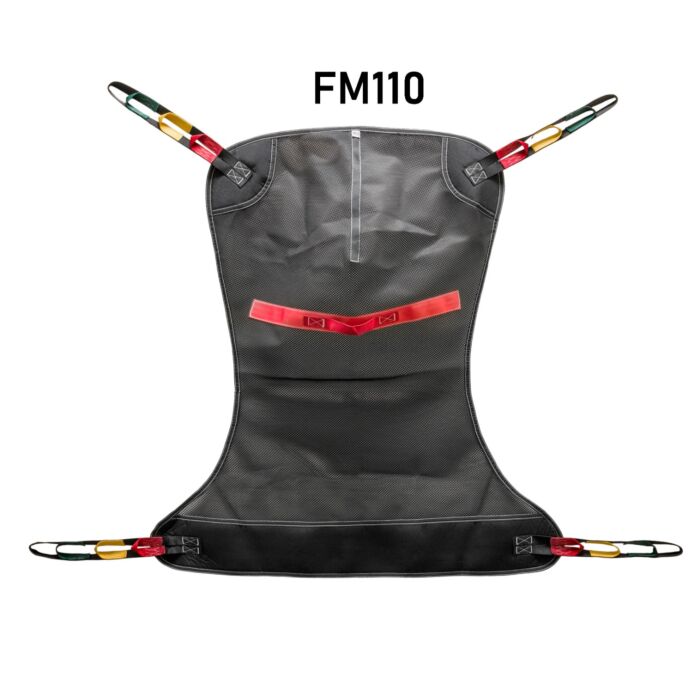

• FM110 Medium, 42.75" X 50.75", 450 # Capacity
• FM111 Large, 44.75" X 54.25", 450 # Capacity
• FM140 XX-Large, 42" X 51", 600 # Capacity

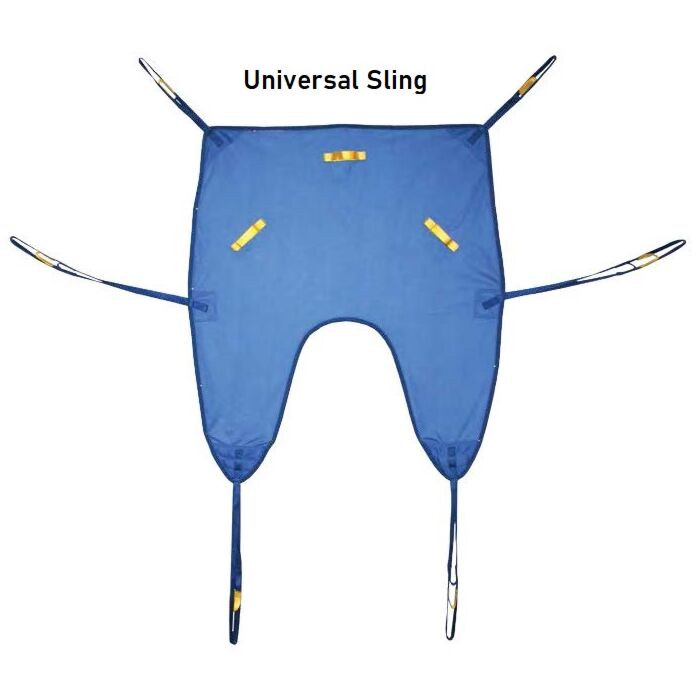

Universal Sling Options

• Provides excellent patient comfort and security
• Reinforced back for support
• Non-mesh slings have padding on legs and back
• Height-Adjustable straps
• Machine washable
• Six point connectivity is designed to enhance
  positioning and safety
• Designed to meet the requirements of
  HCPCS Code: E0621
• UP892 Fabric Medium, 40" X 25.6", 400 # Capacity
• UP893 Fabric Large, 43.5" X 23.8", 400 # Capacity
• UP894 Fabric XX-Large, 48.5" X 28.8", 600 # Capacity
• MS882 Mesh Medium, 40.5" X 25.8", 400 # Capacity
• MS883 Mesh Large, 44.5" X 24.75", 400 # Capacity
