Portable Dragon X-Ray Unit

The AMRAD Medical Dragon Portable Imaging systems offer lightweight portability wherever mobile imaging is required. The ideal application for the Dragon is for use by portable care providers servicing nursing home and home health patients.  Increasingly, clinics and small hospitals also use them for light x-ray procedures and they are ideal for any circumstance requiring imaging portability with easy transport.

Ease Of Use for Operator: Techniques can be selected and adjusted at the control console and at the generator or tube head. There are also five different areas on the unit to activate the collimator light. The operator never has to leave the patient’s side to use these convenient features.

Versatile Models: The Dragon portables come in two different models, 4kW (Dragon Classic) and 8kW (Dragon Elite). The 4kw Dragon Classic version operates from single phase, 110 volt power and provides a lower radiation dose to the patient using shorter exposure times. This is possible because the Dragon has a 4kW power output with 100 mA / 125 kVp energy ranges, along with a dual focal spot x-ray tube. The 8kW Dragon Elite requires 220 volt power.

Self-Diagnostics: If the Dragon detects undesired incoming voltage drops when operating with poor electricity lines, it will automatically derate itself to prevent possible electronic failures due to insufficient incoming power.

Portability Option: At 118 pounds, the Dragon is one of the lightest portable systems on the market. Its low weight, along with the long rails on the rear of the unit, make it much easier for the operator to move in and out of a vehicle between patient visits.

Convert To DR System: Users also have the ability to convert the Dragon Portable unit from analog to digital with the digital retrofit kit. This optional DR Retrofit Kit mounts to both the touch screen and membrane console unit and allows for conversion from analog to DR Ready in one hour. Ask about our DR options or add your own.

• Dragon Classic- 4.0 kW, 100 mA, 125 kVp or Dragon Elite - 8.0 kW, 100 mA, 125 kVp
• High Frequency Ripple: 300 kHz
• 40 to 125 kVp in 1 kVp steps
• Available with a 6 region APR console touchscreen or a 1 region APR console durable overlay membrane 14 mA stations: 5, 6.4, 8, 10, 12.5, 16, 20, 25, 32, 40, 50, 64, 80 and 100
• Single-phase line Automatic Regulation, Automatic Output Power Adaptation to Power Line Condition
• Exceptional arm mobility
• Active collimator light from 4 locations
• Fractional focal spot tube for greater detail
• Technique selection at console or tube

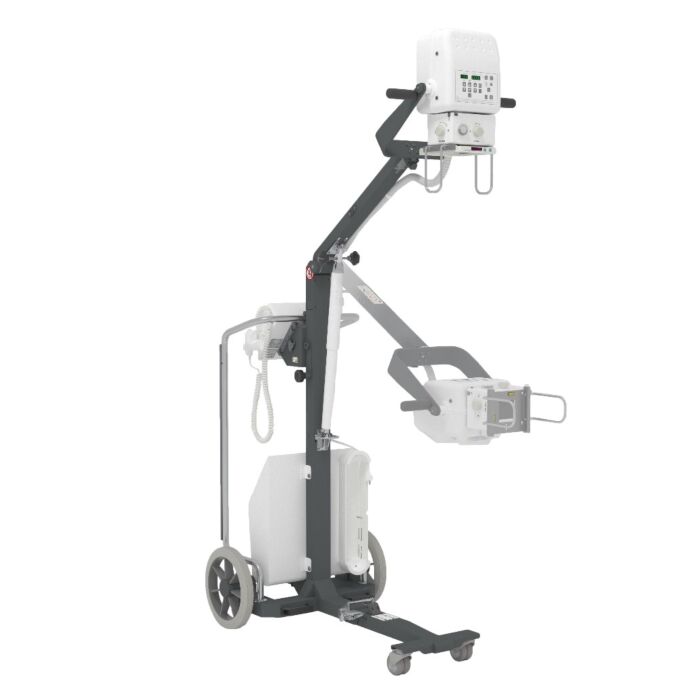

DRAGON-Classic:

Generator

• 4.0 kW, 100 mA, 125 kVp (see power requirements below)
• High Frequency Ripple: 300 kHz
• 40 to 125 kVp in 1 kVp steps
• Overlay Console allows customization of 1 APR region•20 editable positions; 6 regions optional
• 14 mA stations: 5, 6.4, 8, 10, 12.5, 16, 20, 25, 32, 40, 50, 64, 80 and 100
• 0.001-10 second exposure time range, 41 total in 25% steps
• 0.1 to 250 mAs, 34 total in 25% steps

X-Ray Tube: 0.5mm x 1.8mm dual focus stationary anode tube, 47,215HU/16 Degree

Collimator: Collimator, certified manual

Mechanics

• Stand on base with wheels for easy maneuverability
• Gas spring arm supports tube to accommodate easy positioning
• Positive mechanical brakes
• Cassette storage box accommodates up to 8 cassettes
• Vertical tube travel, 62" (16.7"-78.7")
• 118 lbs total weight

Power : Power Cord, 19.7' long (6 meters) and Exposure Cord, 9.8' long (3 meters)  Single-phase line Automatic Regulation, Automatic Output Power Adaptation to Power Line Conditions

Warranty: guaranteed to be free of manufacturing defects for a period of 12 months from date of shipment.

DRAGON-Elite

Generator

• 8.0 kW, 100 mA, 125 kVp (see power requirements below)
• High Frequency Ripple: 300 kHz
• 40 to 125 kVp in 1 kVp steps
• Touch Screen
• Allows customization of 6 APR regions (skull, thorax, spine,abdomen/pelvis, lower and upper extremities)
• Small, medium, large and pediatric patient sizes
• User friendly multi-language selection
• 14 mA stations: 5, 6.4, 8, 10, 12.5, 16, 20, 25, 32, 40, 50, 64, 80 and 100
• 0.001-10 second exposure time range, 41 total in 25% steps
• 0.1 to 250 mAs, 34 total in 25% steps

X-Ray Tube: 0.6mm x 2.8mm dual focus stationary anode tube, 40,000HU/15 Degree

Collimator: Collimator, LASER, certified manual

Mechanics

• Stand on base with wheels for easy maneuverability
• Gas spring arm supports tube to accommodate easy positioning
• Positive mechanical brakes
• Cassette storage box accommodates up to 8 cassettes
• Inclinometer
• Vertical tube travel, 62" (16.7"-78.7")
• 118 lbs total weight

Power

• 220 – 240 VAC; Requires solid 20 amp breaker for full pawer (can be de-rated)
• Power Cord, 19.7' long (6 meters) and Exposure Cord, 9.8' long (3 meters)
• Single-phase line Automatic Regulation, Automatic Output Power Adaptation to Power Line Conditions

Warranty: guaranteed to be free of manufacturing defects for a period of 12 months from date of shipment.
