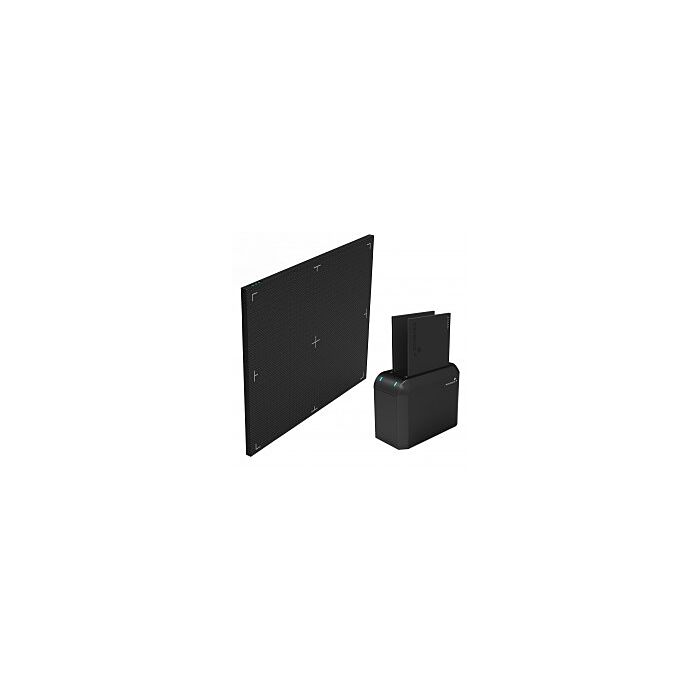

Rayence XMARU 14x17 Wireless DR

The 1417WGC/WCC detectors are ideal for in-room and portable applications by providing increased workflow effficiency in the X-ray room and beyond. Its durable carbon-fiber, seamless unibody construction combined with a shock, vibration and scratch resistant composition makes it well-suited for the most demanding imaging environments. An Access Point (AP)  enables images to be directly sent to a Wi-Fi connected computer within seconds and a built-in memory storage permits taking images where a computer connection is not available as well as prevent lost images should there be an interruption of power. These are among many features that make the 1417WGC/WCC the ideal flat panel detector solution for both fixed and portable applications.

Solution For:

• Imaging Center
• Private Practice
• Veterinary
• Chiropractic
• Orthopedic
• Radiology
• Urgent Care
• Hospital

Standard Features:

• ISO 4090 cassette size standard
• Auto-triggering technology
• GYRO
• Image Storage
• Access Point (AP)
• Waterproof
• Quick and easy installation

Specifications:

• Detection Area:                        14 x 17 in

• Dimensions (W x L x H):            460 x 384 x 15.4 mm
• Active Area:                              422.7 x 357.6 mm
• Sensor Type:                             Amorphous Silicon with TFT
• Scintillator:                               Gadolinium Oxysulfide (Gadox) / Cesium-Iodide (Cesium)
• Weight:                                      <3 kg (6.6 lbs) Gadox / <3.1 kg (6.8 lbs) Cesium
• Active Pixel Number:                 3268 × 2756 pixels
• Pixel Pitch:                                 127 μm
• Limiting Resolution:                    Max. 3.9 lp/mm
• Energy Range:                              40 - 150 kV
• A/D Conversion:                           14 or 16 bits
• Data Acquisition Time:                 <2.0 sec(wired)  <5.0 sec(wireless)
