Weight Bearing Cassette / DR Panel Holder

When it comes to conducting weight-bearing feet and ankle studies, closed cell foam products offer an economical and effective solution. Their unique properties make them perfect for a range of imaging and diagnostic applications.

Benefits of Closed Cell Foam Products:

• Cost-Effective: Closed cell foam provides an affordable option without compromising on quality. Its durability and versatility make it a smart choice for budget-conscious practices.
• Superior Support: The foam's supportive nature helps stabilize and cushion the feet and ankles during imaging, ensuring accurate and consistent results.
• Easy to Clean: Closed cell foam is resistant to moisture and easy to clean, maintaining hygiene and functionality in busy clinical settings.
• Customizable: Available in various shapes and sizes, closed cell foam products can be tailored to fit specific study requirements, enhancing flexibility in research and diagnostics.
• Durable and Long-Lasting: Its robust construction ensures that the foam withstands repeated use and maintains its shape, providing reliable performance over time.

For weight-bearing feet and ankle studies, closed cell foam products offer an ideal balance of cost-effectiveness, support, and durability. Explore our range of closed cell foam solutions to find the perfect fit for your practice and enhance your imaging studies with confidence.

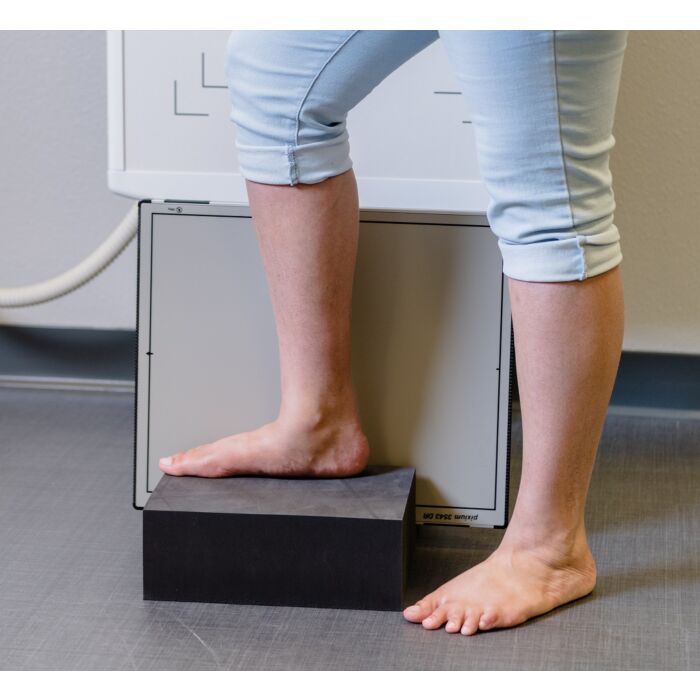

The 2 Step Weight Bearing Cassette / DR Panel Holder is designed as a light weight economical option for studies that might require positioning on a 2 step platform.  This allows for quick and easy positioning for patients that are stable enough to not need a built in handrail.  A Valsbar or other stabilizing bar in your x-ray room can be used for stabilty if needed.

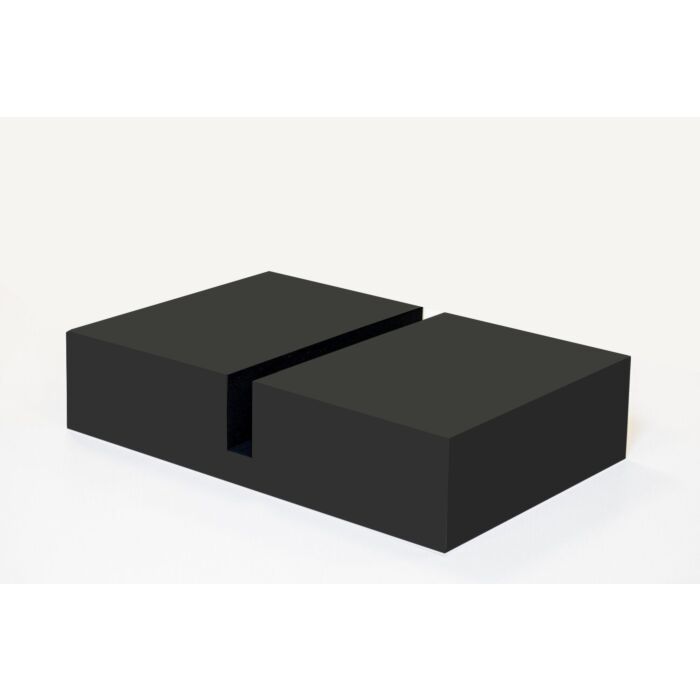

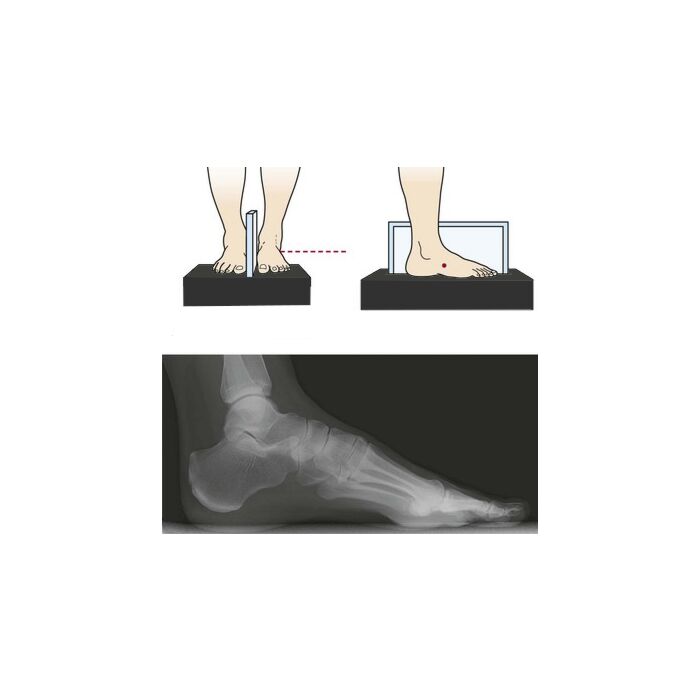

High density crosslink closed cell foam provides durability and cleanability is an excellent positioning aide for weight bearing studies. Developed to facilitate imaging of longitudinal arch and lateral projection studies of feet and ankles.

Our closed cell crosslink foam has a very fine micro-cellular structure that is characterized by a compact feel and is resistant to fluids. The smooth easy to clean surface is resistant to blood, Betadine, barium, alcohol, and other fluids., It is ozone resistant and impervious to mildew, mold, rot and bacteria. Non toxic and contains no CFC's, HCFC's, or hydrocarbon blowing agents. Anti-microbial: antibacterial and antifungal.  Weight bearing up to 300lbs. Find cleaning and care instructions below on product attachments tab.

Foam Size: 24"L x 16"W x 12"H

First Step: 10"L x 16"W x 6"H

Top Platform: 14"L x 16"W x 12"H

Dimension of the slot:  14"L x 0.625"W x 1.5"D

Weight 12 lbs.

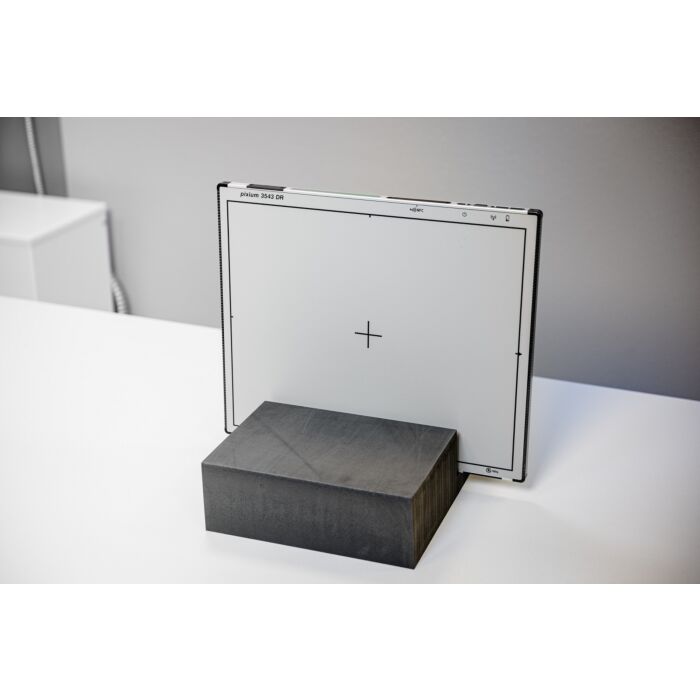

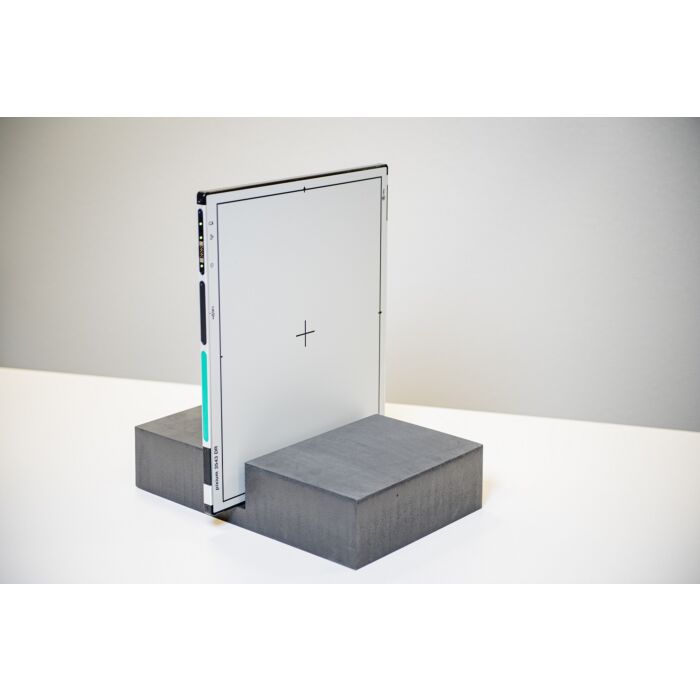

Shown with 14 x 17 receptor

Click HERE to learn more and see additional photos of this platform.

Z&Z Medical is displaying the latest and greatest in Podiatry X-Ray Imaging. If you can't make it but would like to learn more about what's new in Podiatry Radiology, contact Imaging Consultant Brian Carr to schedule a visit.

Brian Carr | Imaging Consultant for Z&Z Medical Inc.
1924 Adams Street | Cedar Falls, IA 50613
PH  800.410.9575
EMAIL  bcarr@zzmedical.com
WEB:  Podiatry - Dept./Modalities (zzmedical.com)
CELL 319.575.0965
#IPMS

Patients often require imaging for joint-related trauma or pain. After a history and examination, plain radiographs are often the next step in investigating a patient’s musculoskeletal complaints. Patients with possible surgical pathology, such as osteoarthritis, may be referred to an orthopedic surgeon, who often repeats the initial films. because the original films were not ordered weight-bearing. So why weight-bearing X-rays? American Orthopaedic Foot & Ankle Society says avoid non-weightbearing X-ray evaluation of the foot and ankle when patients are able to stand. The functional position of the foot and ankle is one of weightbearing. Foot and ankle deformity may be decreased or absent on non-weightbearing x-rays as compared to weightbearing x-rays. Therefore, foot and ankle disorders including flatfeet, ligamentous injuries of the midfoot, ankle arthritis, bunions, and hammertoes that are well-demonstrated on weightbearing x-rays may be underestimated or not appreciated at all on non-weightbearing x-rays. Therefore, when possible, weightbearing x-rays of the foot and ankle are preferred in order to give the most accurate assessment of the functional bony anatomy of the foot and ankle.

Weight Bearing Stands – which one to choose?

There are a wide variety of weight bearing stands available for your imaging facility. A lot comes down to budget, space, and how far your x-ray tube will go down to the floor in order to capture a weight bearing image of the foot and ankle. Z&Z Medical carries a wide variety to meet a wide array of needs.

1. One Step Weight Bearing Holder: This is the most economical one step platform for weight bearing studies on the market.
2. Two Step Weight Bearing Holder: This is the most economical two step platform for weight bearing studies on the market.
3. Receptor Protector: For AP ONLY weight bearing studies, these protectors protect your imaging receptor and will hold up to 450 lbs.
4. U-Arm/C-Arm weight bearing platform: This is a Great platform for AP and Lateral imaging. Will hold up to 750 lbs.

CLICK HERE to view the many one and two step platforms for AP and Lateral Weight Bearing Studies.  If you have a question about any of these devices, please reach out to info@zzmedical.com or visit our Live Chat on our website to talk live with a customer service representative.
